OCEAN - Cutter Suction Dredger

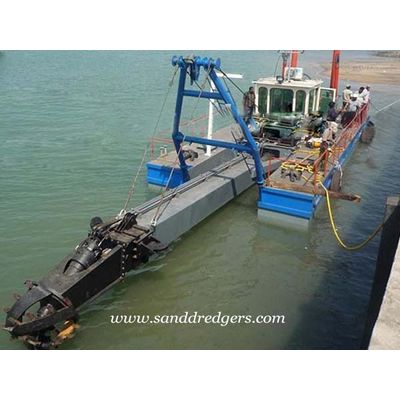

Cutter suction dredger makes use of a cutter head to loosen the material to be dredged and pumps the dredged material via a pipeline ashore or into barges. The powerful cutter swings around the spud-pole powered by winches while dredging, then the high pressure sand pump suck up the loosened mixed materials to the destination through the suction pipe. The hydraulic cutter suction dredger is suitable for heavy duty and durable dredging operations with dismountable structure.
The hydraulic cutter suction dredger is often designed easily to transport by road, rail or by ship due to its reasonable size and weight of the various dismountable modules. The complete hydraulic cutter suction dredger consists of one main pontoon and two side pontoons which are mounted to the main pontoon using heavy duty steel eyes and pins at the bottom of the hull, they are connected at deck level. The pontoons are of welded steel constructions with heavy frames, beams and longitudinal girders. Extra reinforcements are placed where necessary to withstand all forces while dredging. It is widely used for river silt cleaning, delisting lakes and ponds, mining project, cleaning ports and sand production.
- Heavy duty, high concentration ratio, excellent particle allowance and long discharge distance
- Optimal configuration of power and hydraulic unit (less operating costs)
- Dismountable structure, easy to disassembling and transportation.
- Double powerful auger drive (infinitely for- and backwards)
- High working range of the outrigger arm
- Equipped with self propulsion system that can be moved to different work site or drag by tugboat
- Cutter suction head can be changed for different situation
- Easy access to all parts, especially the dredge pump wearing parts.
- Fresh water cooling system.
- Safe and easy to operate
- Can be designed and fabricated according to the your requirements
OCEAN Pump had been dedicated in designing and manufacturing sand pump, slurry pump, gravel pump and sand dredging equipment for over 30 years. Our sand pump and sand dredge products had been exported to over 60 countries. OCEAN Pump brand hydraulic cutter suction dredger can be used for the following applications.
- Heavy duty operation in tropical climate and sheltered water
- River silt cleaning, delisting lakes and ponds, mining project, cleaning ports and sand production
- Sand and mud dredging, digging channel and reclamation by pumping filling
- Channel digging and reclamation by pumping filling in rivers, lakes and sea
- Compact cutter suction dredger can be dismantled into sections and moved by road for work in inland waterways, sludge lagoons, reservoirs and similar isolated areas.
- Large heavy duty hydraulic cutter suction dredger can be capable of dredging some types of rock which have not been pre-treated.
