Oddesse - Model Types: po-so / po-ss -Submersible Pumps

FromOddesse Pumpen- und Motorenfabrik GmbH

SHARE

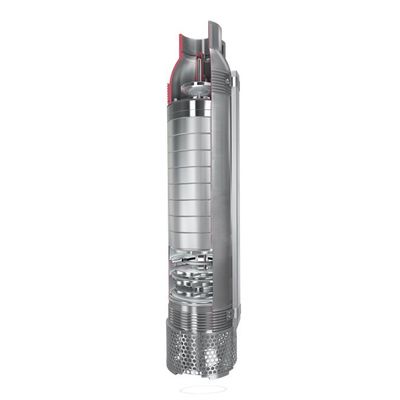

Multistage centrifugal pumps in jacket or sectional design with radial or semi-axial impellers.

Most popular related searches

multistage centrifugal pump

domestic water supply

centrifugal pumping

centrifugal pump

contaminated water

multistage pump

Delivery rate: 1,200 m3/h
Delivery head: 600 m
Performance: 450 kW
Voltage: 1,000 V
Type of current: 1- and 3-
Frequency: 50 and 60 Hz
Degree of protection: IP68
Ambient temperature: 80 ° C

domestic water supply by water works
irrigation and drainage
overhead irrigation
dewatering in mining and underground construction
service water provision for industry and power plants
pressure boosting systems
sea water delivery
geothermal water utilisation
delivery of chemically contaminated water
environmental technology
clean or slightly dirty water with a solids content of up to 100 mg/l
fresh water, sea water and brackish water
delivered medium temperatures of up to 80 °C

multi-stage centrifugal pumps in jacketed tube or section design with radial or semi-axial impellers
rewindable glandless motors
Motors according to NEMA standard or international standards
pressure nozzle with pipe thread or flange
high-quality materials for use in industrial, process, geothermal and sea water

small outer diameter
vertical and horizontal installation possible
low plant and operating costs
long maintenance-free run times
adjustable by frequency converter
low repair costs
easy spare parts inventory thanks to the modular principle
eco-friendly and recyclable

Impeller: Cast Iron / Noryl / AISI 304 / AISI 316 / Duplex
Diffuser / stage casing: Cast Iron / Noryl / AISI 304 / AISI 316 / Duplex
Suction casing / check valve: Cast Iron / AISI 304 / AISI 316 / Duplex
Outlet branch: Cast Iron / AISI 304 / AISI 316 / Duplex
