Ultravation - Model UVMatrix PCO -Odor / VOC Reduction System
The UVMatrix PCO (photocatalytic oxidation) series is designed for HVAC systems from 1,200 to 8,000 CFM. These unique air purification systems are available in two different sizes to accommodate various HVAC configurations and to accomplish superior results in any HVAC environment!

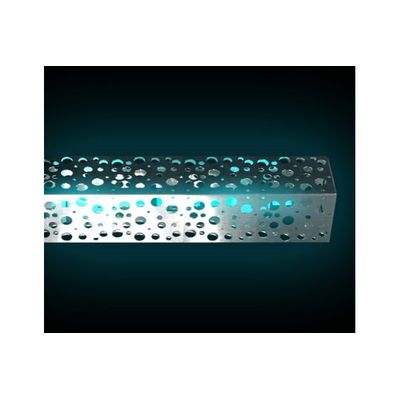

The air purification modules are coated with a patented titanium dioxide (TiO2) + zinc (Zn) and silver (Ag) ion PCO formulation. Powered by UV-C light, the UVMatrix PCO purification process breaks down air contamination and is germicidal. It destroys potentially harmful VOCs (volatile organic compounds), odors, and other airborne chemical compounds while sterilizing airborne pathogens in seconds.
UVMatrix PCO system options include adding a second PCO module if VOC / odor levels call for it, or adding a 12" or 17" high-intensity UV-C lamp. Adding UVGI will disinfect the HVAC coil (which can significantly lower HVAC energy consumption), drain pan and other surfaces while working in tandem with the PCO modules to create two air disinfection zones in the HVAC airstream for an intensified reduction of airborne pathogens such as virus and bacteria.
- Two module sizes: 4" and 10"
- 18,000-hour lamp life
- 10-year system warranty (excludes lamp)
- 1-year UV lamp warranty
- Easy maintenance with extended two-year UV-C lamp replacement interval.
- Available T3™ enhanced lamp system for surface disinfection and additional pathogen reduction.
- Reliable and UVC-optimizing electronic power supply helps extend lamp life.
- Compact Power Supply: just 3.5" x 3.5" x 1"
- Available for 24, 120-277 VAC operation
- 6 ft. power cord (24 VAC models)
- Easy to install with pre-installed magnet mount.
