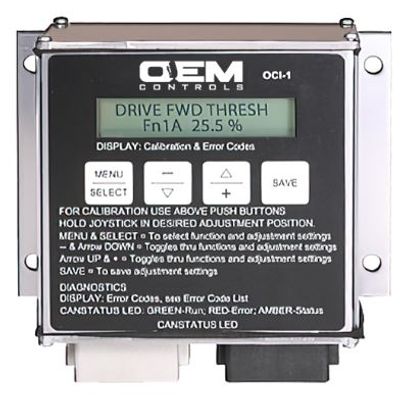

OEM Controls - Model OCI-1 -Input Master Module
The OCI-1 Input Master Module from OEM Controls is a versatile component designed for a range of industrial applications requiring precise control. It integrates seamlessly with other control devices, allowing for efficient and accurate command execution in complex machinery environments. Compatible with devices such as MG Multi-Grip Handles, Cap and Ball controllers, RG Rocker Grips, and various Valve Driver Modules (VDM10/15/20, VDM 40), the OCI-1 fulfills a critical role in system integration by ensuring that user inputs are effectively processed and transmitted to the corresponding actuators. Each unit is meticulously engineered to meet the stringent requirements of diverse sectors including construction, marine, agriculture, and mining, among others. This module supports custom configurations to suit specific operational needs, offering reliable performance under harsh conditions. Its robust design and flexibility make it an essential component for enhancing machine operability and efficiency.
- On-machine adjustability and troubleshooting – no external device or computer needed
- Compact and economical – spread modules out instead of running cable
- Versatile – factory programmable I/O designation (input vs. output, sink vs. source)
- 4 channel current regulation on one module
- Inputs: 10 Bit (0-5vdc), 11 Bit(0-10vdc), 4 Analog (Voltage) Inputs, 8 Digital Inputs
- Outputs: 4 1A Digital Outputs (Indicators), 2 1A Outputs (Thumpers)
- Housing/Enclosure Dimensions: Aluminum Extrusion – 2″ H x 4.2″ L x4.2″ W (5.2″ with mtg feet)
- Power: 8 – 32 VDC, short-circuit, over voltage and reverse-polarity protection
- Connectors: Main I/O – Two 12 pin Deutsch DT series connectors (24pins)
- Communications: Standard Protocol CANOPEN and CAN 2.0 B
- Environmental Operating Temperature: -40°C- 70°C operating; Humidity: 10-95% RM
- Protection: High performance silicone conformal coating tested to IP-65 or greater
- Human Machine Interface: LCD Display, 2 lines at 16 characters, 4 Button Membrane Keypad
