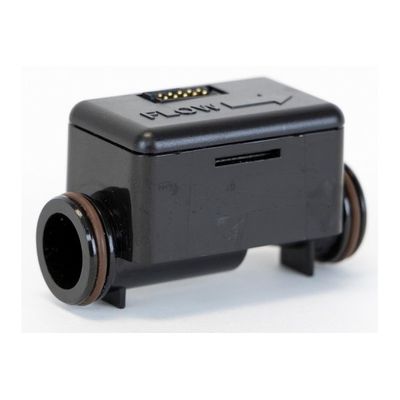

TSI - Model 840623 -OEM Mass Flow Sensor
FromTSI Incorporated
Our engineering team can develop the precise mechanical configuration, performance characteristics, and electronic interface you need to optimize your design. The exceptional performance of these embedded flow sensors can enhance your product`s performance and improve the time to market on new product development. OEM Mass Flow Sensor that can be calibrated for air and O2 with accuracy of ±2.0% of reading or 0.05 standard L/min @ 21 °C.
Most popular related searches
mass flow sensor
flow sensor
mass flow
mass flow monitoring
2011/65/EU
flow meter
flow analyzer
RoHS regulations
flow monitoring
RoHS
- Fully calibrated and ready to install
- Mass flow measurements
- Fast response
- Accuracy as a percent of reading
- Low pressure drop
- Calibration: air and oxygen
- Flow range: 0 to 300 standard L/min
- Accuracy: ±2.0% of reading or 0.05 standard L/min @ 21 °C (Consult TSI for complete product specifications. Specifications are subject to change without notice.)
- Temperature range: 10 °C - 50°C
- Pressure drop: 50 cm H2O at 200 L/min
- Response time: 3 msec (63% to full-scale flow)
- Output signals flow: 0 to 3.3 VDC non-linear, 2 channel
- Output signal temperature: 0 to 2.5 VDC non-linear
- Input voltage: 5 VDC ±10%, regulated
- Power consumption: 0.8 watts at full-scale flow
- Mating connector: Molex 87832-1020 (2 mm pitch, 2 row, 10 pin)
- Eeprom interface: I2C Communication
- Meets RoHS Directive 2011/65/EU
