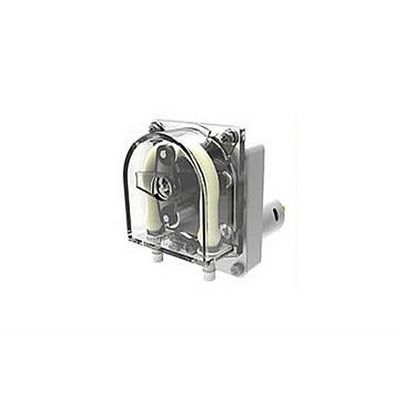

Verderflex - Model M500 -OEM Peristaltic Pump

SHARE

Maximum Flow Rate: 730 ml/min. Maximum Discharge: 2 Bar. Pump head: Polycarbonate - standard, Noryl - optional.

Most popular related searches
peristaltic pump OEM
OEM pump
peristaltic pump
chemical dosing
head pump
asynchronous motor
  • Rotor Options: 2 Roller Polycarbonate
  • 3 Roller available on request
  • Motor Options: DC Version 12 or 24 V DC 20W Long Life Brushed DC Motor Standard Speeds - 51rpm, 82rpm, 125rpm, 176rpm, 240rpm or 325rpm
  • AC Version 230V 50Hz 100-280W Asynchronous Shaded Pole Motor (for intermittent duty) with ¾", 1", 1½" motor stack to suit torque requirements
  • Standard Speeds - 51rpm, 82rpm, 125rpm, 176rpm and 240rpm
  • 110V 60Hz version to special order
  • Tube Assembly Material: Verderprene, Silicone, Viton® and Tygon®
  • Tube Sizes: 1.6 x 1.6mm, 3.2 x 1.6mm and 4.8 x 1.6mm
  • Weight : 1.5kg
