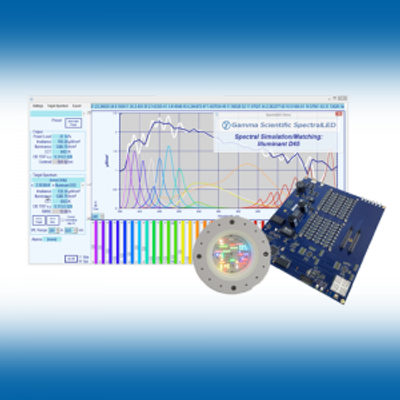

Gamma Scientific SpectralLED - Model RS-7 -OEM Uniform Intensity Light Sources for Precision Applications
Gamma Scientific`s RS-7 OEM Uniform Intensity Light Sources are designed to meet the high-resolution and precision requirements of various custom configurations. These modular light sources integrate advanced control electronics, well-planned layout and wavelength options, and specialized light delivery optics. Additionally, the devices support wavelength monitoring and feedback systems to ensure optimal performance. This product is particularly suitable for OEM applications where customization is crucial. Users can start with a base model and modify it to fit specific needs, achieving an unprecedented level of resolution and accuracy in illumination. These light sources are instrumental in applications requiring stringent control over light properties and comprehensive adaptability across various technical parameters.
- Camera and image sensor calibration
- Photodiode detector responsivity characterization
- Spectrum / illuminant simulation
- Diagnostic medical imaging
- Technical and industrial photography
Unprecedented Resolution and Accuracy
- 32 discrete LED wavelengths from the UVA to the NIR
- Powerful synthesis engine – quickly simulate any CIE Illuminant or MacBeth™ / X-Rite™ Color Patch
- Flexible interface – built-in RMS spectral fitting for simulation of any user imported spectra
- Uniform 75mm radiance output port or optional baffle tube for irradiance
- Superior performance to tungsten-halogen and xenon lamps, with exponentially lower operating costs
- Pure DC constant current drivers and built-in optical feedback photodiode system – ensure accurate output in real-time
- On-board thermo electric cooler and feedback – for precise LED temperature control
- ISO/IEC 17025 NVLAP accredited calibration laboratory (lab code 200823-0) – ensures superior wavelength and color accuracy
Customizeable Options include the following:
- Number of channels (up to 64)
- LED wavelength
- Form factor
- Optical frontend
- With or without photodiode feedback
- With or without temperature contol
- Camera and image sensor calibration
- Photodiode detector responsivity characterization
- Spectrum / illuminant simulation
- Diagnostic medical imaging
- Technical and industrial photography
OEM Partner for:
- Technical Integration
- Maintenance cycles
- High volume deployment
- SDK/API included
