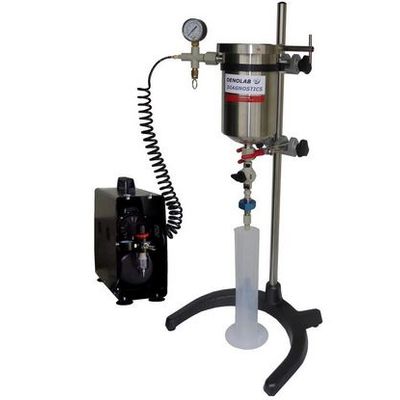

Oenolab - Model FTU+ -Filter Test Unit
FILTER TEST UNIT ECO + COMPRESSOR. Equipment for determination of wine filterability with compressor. The filterability index is obtained by measuring the difference of time needed to filtrate 200 ml and 400 ml of wine at 2 bars through a membrane Ø 25 mm with a porosity of 0.65 µm. Wine should be at room temperature before measurement.
Most popular related searches
filter testing system
filter testing
relief valve
membrane monitoring
pressure gauge
ball valve
filter holder
pressure relief valve
pressure relief safety valve
temperature monitoring
Supplied with:
- compressor to setup pressure at 2 bars
- Stand with 2 clamps
- 2 liters pressurized stainless steel container
- air imput connector
- pressure gauge
- relief valve with safety pressure release above 2.7 bars
- ball valve
- PE filter holder for 25mm Ø membrane
- measuring cylinder 500 ml
Calculation of the Filterability index:
- FI = (T4 - 2xT2) x 1.66
- T2 = time of passage of 200ml in seconds
- T4 = time of passage of 400ml in seconds
- Wine has a good filterability if the filterability index is less than 20.
Product Details
- Reference FTU+
