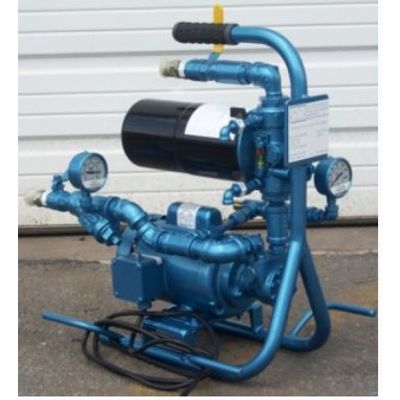

OFS - Hand Held Filtration Systems
Compact Hand Held Filtration Systems for use for fluid transfer or kidney-loop filtration. The harmful effects of particulate and moisture contamination in hydraulic and lubrication oils have been well documented. By maintaining absolute fluid cleanliness, end-users can dramatically increase the life of critical wear components on rotational equipment, minimizing downtime and maximizing profitability. We have developed a line of compact Hand Held Filtration Systems intended for use for fluid transfer (new oil from 55-gallon drums) or kidney-loop filtration. They are the most compact, lightweight, and reliable filtration systems in the industry today.
OFS maintains several Hand Held Filtration Systems in a RENTAL FLEET that is ready for immediate deployment anywhere in the world, with process flow rates ranging from 0.5 GPM to 5 GPM.
- Flow Rates Range From 0.5 GPM To 5 GPM
- Particulate Removal - Achieve Very Low Particle Counts As Low As ISO 14/12/9 Utilizing High Efficiency Pleated Microglass Filter Elements Rated Beta(c)>1000 per ISO 16889
- Water Removal - Remove Free Water Utilizing Water-Removal Filter Elements (Absorptive Type)
- Self Priming Positive Displacement Gear Pumps Direct Coupled To TEFC Electric Motors
- NEMA 4 On-Off Switch - 120V, 1-Phase, 60Hz (Other Options Available)
- Inlet Suction Strainer For Pump Protection
- Differential Pressure Gauges For Positive Indication When Filter Elements Are Plugged and Need To Be Changed
- Upstream/Downstream Oil Sample Ports
- All Systems Come Standard With (2) Six Foot Sections of Heavy Duty Petroleum Transfer Hose and Camlock Connections
- Configurations Include Single or Multiple Spin-On Filter Heads
- Lightweight Aluminum Frame
- Stainless Steel Wands For Use With 55-Gallon Drums
- NEMA 7 Explosion Proof Components
- Hydraulic Oil
- Turbine Oil
- Lubrication Oil
- Gear Oil (ISO VG 220 – ISO VG 680)
- Transformer Oil
- Diesel Fuel
- Phosphate Ester (Fyrquel EHC Fluid)
- PAO Fluid
- Water Glycol (Coolants)
