LAR Process Analysers - a brand by Process Insights, Inc.

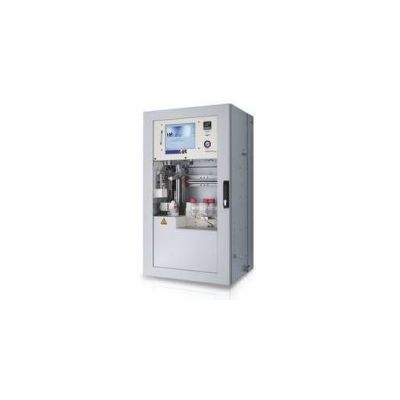

LAR - Model QuickOIL -Oil-in-Water Analyzer (OIW)
LAR`s QuickOIL is the ultimate online analyzer for the determination of oil, fat, and grease in water.
Most popular related searches
oil-in-water
oil-in-water analyzer
online oil-in-water monitoring
fats oils and grease
online oil-in-water
industrial wastewater process
fats oils and grease water
oil-in-water monitoring
water analyzer
industrial wastewater
- Exact determination of Oil-in-Water (OIW)
- Measurement Range: 0.1-100 mg/l, 2-400 mg/l, 5-2,000 mg/l, 100-15,000 mg/l, 100-50,000 mg/l, further options available
- Proven thermal oxidation principle
- Highest combustion temperature available (1,200°C)
- Catalyst-free
- Response Time: 3 minutes
- Multi-stream measurements (optional)
- No filtration necessary
- High salt concentrations possible, up to 30% NaCl
- No memory effects
- Very low maintenance and operational costs
LAR`s oil-in-water analyzer is suitable for a variety of applications and types of water:
- Industrial Waste Water
- Process Water
- Oil-in-Water
- Detailed application overview
For safe operation in hazardous areas, there are different protection housings available:
- IP54 (Standard)
- NEMA 4X
- ATEX Zone I
- ATEX Zone II
- IECEx
Fast online Oil-in-Water monitoring. For every kind of oil, fat and grease.
Oils and fats - of animal, vegetable or mineral origin - are the main components for a variety of products such as fuels, edible oils or fuel oils. In production processes it is quite possible that some of the oils or fats leak into the process and waste water. A large part of the costs that an oil leakage and the attempt to purify the contaminated water brings with, can be saved by the use of appropriate online OIW-analysers (oil-in-water).
LAR`s QuickOIL is the ultimate online analyser for the determination of oil, fat, and grease in water.
Using analyzer options, the measurement system is adaptable for every measurement challenge.
- FlowSampler
- Multi-stream measurement for up to 6 sample streams
- Combination with TOC, COD and TNb detection
