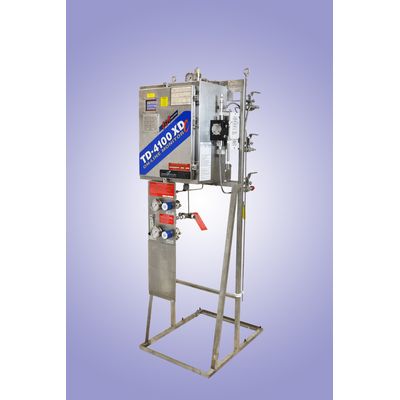

TDHI - Model TD-4100XDC -Oil in Water Monitor
The TD-4100XDC is a closed cell version of the rugged, world industry standard TD-4100XD Oil in Water Monitor. It was designed for normally clean water applications or dirty water applications where fouling can be controlled by chemical injection or optional onboard cleaning systems. It utilizes a clear tube flow cell to contain the sample water at pressure to prevent oxygen contamination in steam systems and to return the sample to the process at pressure. It uses a unique internal cell condition monitor to alert operations of the need for cleaning or to trigger the optional onboard cleaning system. As with all Turner monitors it includes a field validation method.
Most popular related searches
oil-in-water monitoring
oil-in-water
water intake protection
cooling water intake
water monitoring
oil-water monitoring
clean cooling water
flow cell
water cooling
hazardous area
- Fluorescence measurement technology with lowest detection limits available
- Minimal sample conditioning plumbing hardware reduces cost
- Easy calibration with long term stability
- Low maintenance
- User friendly
- Ruggedized for harsh environments
- Internationally certified for hazardous areas
- Custom configurations, and wetted materials
- Steam condensate
- Boiler feed
- Normally clean water
- Cooling water
- Intake protection
- Dirty water with chemical cleaning if needed
Hydrocarbons Detected:
- Fuel oil
- Crude oil
- Other fuels and lubricating oils
- Phenol
- Styrene
- Most heat transfer fluids
- Aromatic chemicals
- BTEX
Detection Range:
- Fuel oil, crude oil 5 ppb-500 ppm in steam condensate
- Most other hydrocarbons
- Applications: Steam Condensate, Boiler Feed, Normally Clean Water, Cooling Water, Intake Protection and Dirty Water with Chemical cleaning if needed
- Hydrocarbons: Fuel Oil, Crude Oil, Other Fuels and Lubricating Oils, Phenol, Styrene, Most Heat Transfer Fluids, Aromatic Chemicals, BTEX
- Detection Range: Fuel Oil, Crude Oil 5 ppb-500 ppm in steam condensate
- Low Detection Limit: Most Other Hydrocarbons
- Dimensions: IncL Wall Mounting: 25" H x 44" W x 12.5" D (635 mm x 1118 mm x 318 mm) Incl. Floor Mounting: 68.4" H x 25.7" W x 25.7" D (1737 mm x 653 mm x 653
- Weight: Floor Mount: 173 lbs (78.5 kg)
- Local Display: Yes, PPM, PPB, or Raw Signal
- Controls: External 316 SS Touch Pad
- Power Requirement: 90 - 240 VAC, 50/60 Hz +/- 10%, 184 W, 1 ph, (24 VDC Optional)
- Plumbing Requirements Sample Pressure Sample Temperature Ambient Te Required In Flow Cell C Pressurized Operationc Calibration Response T Calibration
- Feed: 3/8" or 1/2" Tube, Return: 3/8" or 1/2" Tube
- Ambient Temperature: -4 to 131 *F (-20 to 55 `C) (Heater or Vortex Cooler Optional)
- Required Inst. Air Supply Zone 1: , Zone II: 22 SCFH (0.62 m3/hr)
- Flow Cell Characteristic: Closed Tube with Internal Cell Condition Monitor
- Pressurized Sample Return: Yes
- Operational Principle: UV Fluorescence with application specific optical configurations
- Calibration Stability: +/- 10% over 6 Months or better
- Response Time: 3 seconds full scale spike change, continuous reading
- Calibration: Multiple-point linear or non-linear, or uncalibrated. Holds two calibrations (one for each sample steam).
- Field Validation: Via factory supplied water soluble dye or site prepared standard with hydrocarbons
- Reagents: (For dirty water applications, a cleaning solution may be required)
- Alarms: Early Warning / High Alarm / Cell Condition / Cleaning In Process
- Alarm Contacts: Four user-settable, independently-protected dry contact relays
- Communication: Standard E09 features with 4-20 mA isolated, 500 ohm impedance, selectable between Loop Powered and Instrument Powered, Ethernet. Optional HART, ModBus
- Diagnostics: Self Diagnostics, internal failure linked to alarm, Cell Condition
- Security: Password protects software, Lockable Enclosure 316 Stainless Steel
- IP Rating: Electronics Cabinet 316 stainless steel, NEMA 4X, IP 66
- Maintenance: Calibration check, clean flow cell
- Hazardous Area Options: North America: Class I Division 1, Class I Division 2, Groups B, C, D, T4; ATEX and lECEx: Class I Zone 1, Zone 2, other international codes.
- Sample Pump: Optional
- Cleaning System: Optional
- Data Logger: Standard - see E09 Data Sheet
- Certifications: IMO 107 (49), 9001: 2008 Quality System
