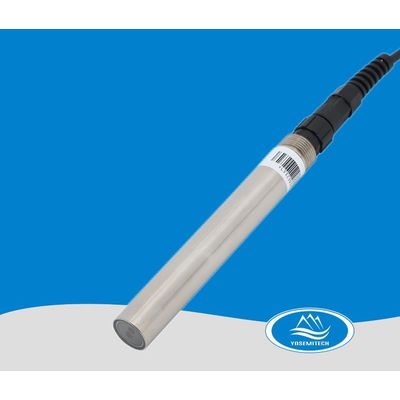

Yosemitech - Model Y616-B -Oil-In-Water Sensor (Crude Oil)

Yoesemitech’s Y616-B online OIW sensor use the principle of ultraviolet fluorescence technique with high sensitivity. Compared with other methods, the fluorescence method is proven to be more efficient, fast and repeatable. which can be used to detect solubility and emulsification. It is suitable for oil field monitoring, industrial circulating water,condensate water, wastewater treatment, surface water station and many other water quality measurement scenes.

Most popular related searches

oil-in-water sensor

oil-in-water

water quality monitoring

water quality monitoring system

RS - 485 output, Modbus protocol compatible;
With automatic cleaning wiper, eliminate influence of oil on the measurement;
Reduce contamination without interference by the light interference from the outside world;
Not affected by particles of suspended matter in water.

Name: OIW Sensor

Model: Y616-B
Principle: Ultraviolet fluorescence
Range: 0-50ppm
Detection limit: Determined by actual oil sample
Resolution: 0.01ppm
Linearity: R²＞0.999
Housing IP Rating: IP68
Maximum pressure: 6bar
Temperature Range: 0 ~ 50℃
Interface: Support RS-485，Modbus protocols
Power Requirements: DC 9~24V，current<50mA

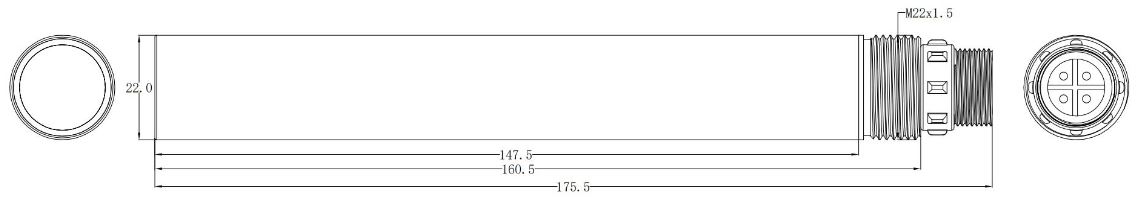

Sensor Size: Φ22mm*175.5mm
Self-cleaning system: Null
Construction: M22*1.5 (optional accessories can betransferred, NPT3/4 thread)
Probe cable length: 10m (default), customizable
Sensor material: Ti
Calibrate: Zero-point，one-point or two-points calibration
