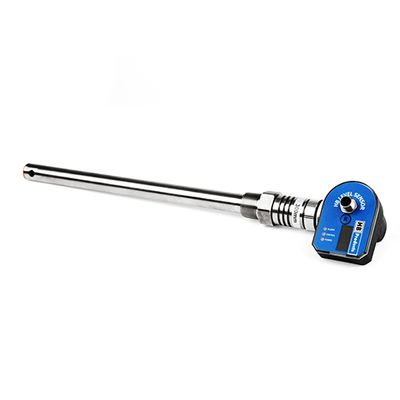

HB Products - Model HBLC-OIL -Oil Level Sensor
The HBLC-OIL sensor is specifically engineered to accurately measure oil levels in various industrial machinery and systems. Utilizing a 4-20 mA analog signal, this sensor effectively transmits precise data, allowing it to be integrated smoothly into control systems for monitoring and automation of oil levels. The sensor is equipped with an M12 connector ensuring robust connectivity. Its application is vital in industries where maintaining the oil level is crucial to operation, such as manufacturing plants and heavy machinery operations. The sensor features a standard version with analog output and is designed with durability to withstand industrial environments, providing a reliable solution for maintenance professionals and engineers looking to ensure optimal operational efficiency.
The HBLC-OIL sensor is designed to measure oil levels and transmits this information via a 4-20 mA analog signal, making it a reliable tool for various industrial applications.
- Liquid temperature range: Operate across a temperature range of 0°C to 145°C (32°F to 293°F).
- Pressure tolerance: Rated for pressures up to 150 bar (2175 psi).
- Power supply: The sensor operates on a 24V DC power supply.
- LED indicators: Provides clear visual indicators for power supply and alarm status.
- Split design: Simplifies installation and diagnostics; electronic parts can be removed with two screws.
- Easy configuration: Configuration with a PC using HB Tool software.
Power supply
Voltage: 24 AC/DC + 10%
Energy consumption: Max 600 mA
Plug connection: M12, 5 pins - DIN 0627
Output
Analog output: 4-20 mA
Linearity: 2 % FS
Alarm output: PNP, 1 A
Output function: NO/NC
Environmental conditions
Ambiant temperature: -30...+50°C
Oil temperature: 0...+145°C
Max. pressure: 150 bar
Protection degree: IP65
Vibrations: IEC 60068-2-6 (4g)
Mechanical specifications
Thread connection: 3/4"
Material - liquid parts: AISI 304 / PTFE
Material - electronic parts: Nylon 6 (PA)
Approvals
EMC test: EN 61000-2
Indication
LED indication: LED 1 x green, 1 x yellow and 1 x red
Accessories
M12 cabel - 5 m: HBxC-M12/5
Cable specification: PUR - 5 x 0,34 mm2
