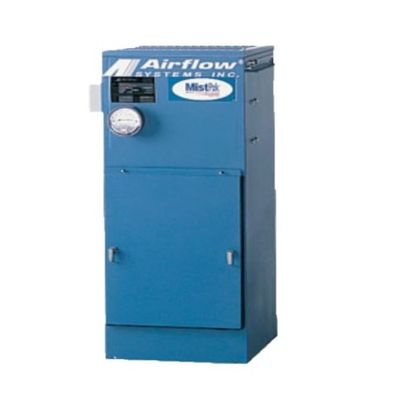

Lev-Co - Model MP4 - 475 CFM - 11-005 -Oil Mist Collector

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, and a 6" bottom inlet. It features a 1" aluminum mesh pre-filter, a Mist-Plus primary filter, and a 3/4 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:

• Multiple Filter types and configurations
• Hoses and mounting components.
• Preventative maintenance pressure gauges
• Variable Frequency Drives

• 18 gauge welded steel cabinet with the powder-coat finish
• Quick-release filter access door
• Ultra-Seal filter mounting system
• Acoustically lined blower cabinet
• Power cord (115V units only)
• On/off switch (115V units only)
• 115-volt units, 230/1 phase and 3 phase units are wired to a side junction box
• The unit comes with the ability to be directly mounted to the machine
• Max Door Opening: 7 ft ²

• Exclusive Mist-Plus containment management system:Delivers over 95% filtration efficiency, reducing operating costs by reducing maintenance intervals
• Welded steel cabinet:Eliminants contaminant escape commonly found in bolt on panel construction
• Baked on powder coat finish:Resists harsh industrial environments
• Front access filter door:Reduces filter changeout and maintenance time
• Small footprint:Compact cabinet requires minimal floorspace, eases machine and wall mounting

Top 5 contaminants/processes/applications:

• Grinding sparks
• CNC Machining
• Lathe Work
• Aerospace Machining
• Cold Heading of Metals

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

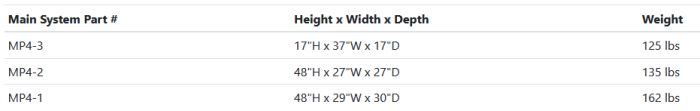

MP4-1

MP4 industrial air cleaner with a TEFC motor 115-230/1/60 Hz

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

MP4-2

MP4 industrial air cleaner with a TEFC motor 208-230-460/3/60 Hz

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

MP4-3

MP4 industrial air cleaner with a TEFC motor 575-600/3/60 Hz

AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.

• Filter Options (when ordering with main unit)
• Replacement Filters
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
• Hose for Oil Mist
• Hose Rings
