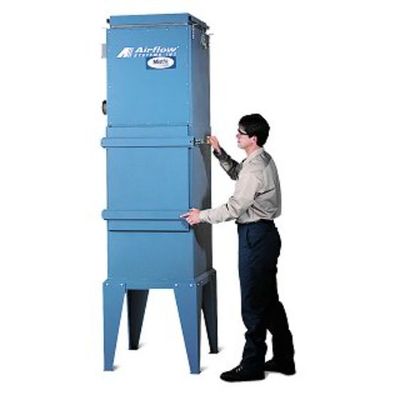

Lev-Co - Model MP30 - 3000 CFM -11-007 -Oil Mist Collector

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

The unit comes with self-draining filters and has a vertical profile. It includes the new removal bottom sump with a 1.5" drain, mounting angles to hang or surface mount, and a 14" bottom inlet. It features a 2" aluminum mesh pre-filter, (4) Mist-Plus primary filter, and a 5 HP BI blower TEFC motor.

Typically, these units are directly mounted to machines horizontally for direct capture of contaminants and can be suspended from any suitable roof support strut.

Main Options:

• Multiple Filter types and configurations
• Motor Options
• Sound Attenuation
• Preventative maintenance pressure gauges
• Variable Frequency Drives

• Includes filter access door on each side for left or right-hand applications
• Acoustically lined blower cabinet
• Max Door Opening: 40 ft ²
• Ultra-Seal® filter mounting system
• Three Phase Motor

Specifications:

• Construction: 16 Gauge welded steel cabinet with powder-coat finish
• Blower Pkg (HP): 5 HP
• Noise Level (dBA): 78 dBA
• Electrical: 208-230/460/575/3/60, 12/6 amps
• Nominal Air Flow (CFM): 3000

Dimensions (Inches):

• Width = 28
• Height = 76
• Depth = 29

• Exclusive Mist-Plus® Containment Management System:Delivers over 95% filtration efficiency; reduces operating costs by extending maintenance cycles and filter life.
• Welded steel cabinet:Eliminates contaminant escape common with bolt-on panel cabinets.
• Baked-on powder coat finish:Resists harsh industrial environments.
• Hinged front access filter door:Eases filter access; reduces filter maintenance and changeout time.
• Sloped drain pan:Facilitates reclamation of captured oil mist.
• Lever locking Filter Mounting:Eliminates contaminant bypass of filters.
• Small Footprint:Compact cabinet requires minimal floor space; eases machine installation.
• Continuous draining:Provides for longer filter life.

Top 5 contaminants/processes/applications:

• Grinding sparks
• CNC Machining
• Lathe Work
• Aerospace Machining
• Cold Heading of Metals

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

MP30-1

• MP30 industrial air cleaner with a 5 Hp TEFC motor 208-230/460/3/60 Hz
• 10-14`: dia duct collar connection right hand side of unit when looking at the collector front access doors

MP30-2

• MP30 industrial air cleaner with a 5 Hp TEFC motor 575-600//3/60 Hz
• 14"D Inlet on the left hand side of the unit when you look at the filter access door.

• Filter Options (when ordering with main unit)
• Replacement Filters
• Sound Attenuation
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
• Hose for Oil Mist
• Hose Rings
