Lev-Co - Model 1200 VOM - 1200 CFM - 11-015 -Oil Mist Collector

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

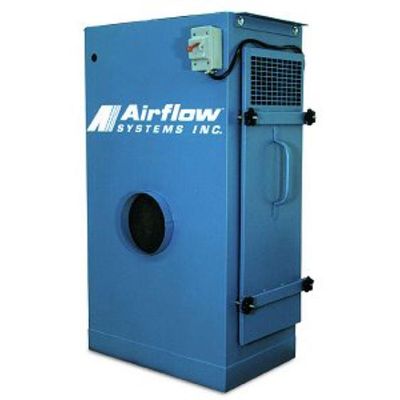

The unit has a vertical profile and includes mounting angles to hang or surface mount, an intake plenum with integral 3" sump, and a drain with four access doors. It features up to four stages of filtration , beginning with a 2" impingement pre-filter, a 2" aluminum mesh filter, a 12" 95% primary filter (option for a 99.97% HEPA filter), and lastly a 2" charcoal filtration (choice). The unit also comes with a standard 1 HP TEFC motor.

Typically, these can be directly mounted to machines vertically to capture contaminants directly and can be suspended from any suitable roof support strut.

Main Options:

• Many Pre-filter and main filter options and configurations
• Hoses and mounting components.
• Hood & Extraction Arm options
• Preventative maintenance pressure gauges
• Variable Frequency Drives

• Includes filter access door on each side for left or right-hand applications
• Acoustically lined blower cabinet
• Wall Mount/Rod Hanging Brackets
• Ultra-Seal® filter mounting system
• Three Phase Motor

Specifications:

• Construction: 16 Gauge cabinet with powder-coat finish
• Blower Pkg (HP): 1 HP
• Noise Level (dBA): 72 dBA
• Electrical: 115/230/1/60, 14/7
• Nominal Air Flow (CFM): 1200

Dimensions (Inches):

• Width = 25
• Height = 44
• Depth = 16

• High capacity source capture:Simplifies OSHA compliance.
• Direct-drive blower:Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
• Non-electrostatic operation:High reliability, low maintenance.
• Ultra-Seal® filter mounting:Eliminates contaminant bypass of filters.
• Vertical design with small footprint:Eases installation, aids draining.

Top 5 contaminants/processes/applications:

• Grinding sparks
• CNC Machining
• Lathe Work
• Aerospace Machining
• Cold Heading of Metals

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

1200 - DRY
1200 cfm dry source capture industrial air cleaner with (1) 2 polyester prefilter, (1) 2 aluminum mesh prefilter, (1) 95% main filter (25 sq.ft. of media), 1 HP TEFC motor, 115/230/1/60Hz and a 8 INLET ON FRONT ONLY. (NO SIDE OR BACK INLET). 72 dBA.

1200 VOM
1200 CFM source capture industrial air cleaner with 2 impingement prefilter, 2 aluminum mesh filter, 12 deep main cartridge filter, 95%, and one 8 inlet in front and 1.5 drain.

• Filter Options (when ordering with main unit)
• Extraction Arms
• Replacement Filters
• Sound Attenuation
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
