Lev-Co - Model 2400 VOM - 2400 CFM -11-017 -Oil Mist Collector

The system is best suited for capturing applications that include metalworking, cutting, forming, and shop environments across multiple industries.

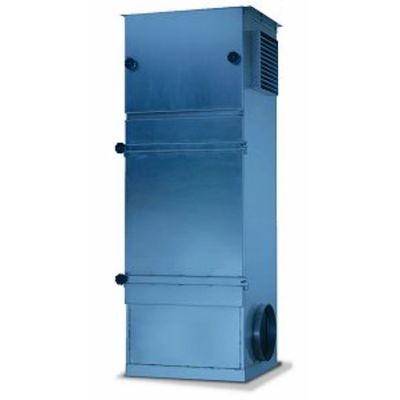

The unit has a vertical profile and includes mounting angles to hang or surface mount, a 12" diameter inlet on the left side, an intake plenum with an integral 3" sump, and a drain with four access doors. It features up to three stages of filtration , beginning with a 2" impingement pre-filter (2" aluminum mesh option), a 2" aluminum mesh filter (4" Chevron filter option), and a 12" 95% primary filter (option for a 99.97% HEPA filter). The unit also comes with a standard 1.5 HP TEFC motor (3 HP TEFC BB motor option).

Typically, these can be directly mounted to machines vertically to capture contaminants directly and can be suspended from any suitable roof support strut.

Main Options:

• Many Pre-filter and main filter options and configurations
• Fan/Motor Upgrades or Options
• Hoses and mounting components.
• Sound Attenuation
• Preventative maintenance pressure gauges
• Variable Frequency Drives

• Includes filter access door on each side for left or right-hand applications
• Motor/Blower Access panel
• Acoustically lined blower cabinet
• Wall Mount/Rod Hanging Brackets
• Ultra-Seal® filter mounting system
• Three Phase Motor

Specifications:

• Construction: 16 Gauge cabinet with powder-coat finish
• Blower Pkg (HP): 1.5 HP
• Noise Level (dBA): 75 dBA
• Electrical: 208-230/460/3/60, 5/2.5 amps
• Nominal Air Flow (CFM): 2400

Dimensions (Inches):

• Width = 24
• Height = 75
• Depth = 24

• High capacity source capture:Simplifies OSHA compliance.
• Direct-drive blower:Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
• Non-electrostatic operation:High reliability, low maintenance.
• Ultra-Seal® filter mounting:Eliminates contaminant bypass of filters.
• Vertical design with small footprint:Eases installation, aids draining.

Top 5 contaminants/processes/applications:

• Grinding sparks
• CNC Machining
• Lathe Work
• Aerospace Machining
• Cold Heading of Metals

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

2400 - DRY
2400 cfm source capture industrial air cleaner with (1) 2 aluminum mesh filter, (1) 2 polyester prefilter, (1) 95% main filter (88 sq.ft. of media), 1.5 Hp motor, 208-230/460/575/3/60 Hz (5.8/2.9 amps), and a 12 INLET ON LEFT SIDE, MAXIMUM. 75 dBA.

2400 VOM
2400 CFM source capture industrial air cleaner with 2 impingement prefilter, 2 mesh filter, 95% main filter, 88 ft2 and one 12 inlet on left side, 1-1/2 HP, 208-230/460/3/60 motor and 1.5 FPT drain.

• Filter Options (when ordering with main unit)
• Replacement Filters
• Sound Attenuation
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
