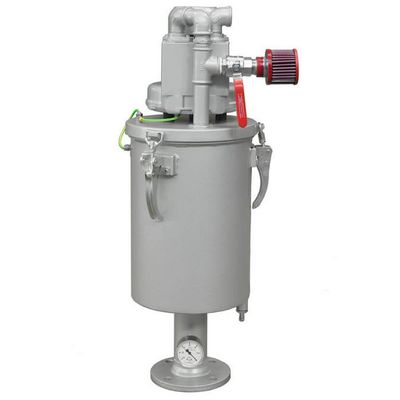

contec - Model Type 180/435, Flow rate 24 Nm³/h -Oil Mist Separator

SHARE

COMS-Type: COMS-Type 180/435, Flow rate 24 Nm³/h. Application: Installation of the Oil Mist Separator on: Lube oil systems (LOS) of gas and steam turbines. Fluid grinding plants. Vacuum pumps. Spray pattern test bench. Rotating machines. Compressors. Large-scale compressors. Crankdrives. HE fluid grinding plants for diesel injection components.

Most popular related searches
oil mist separation
oil mist separator
oil mist
mist separator
Zone 1 hazardous area
oil separation
blower unit
oil recycling system
exhaust air purification
explosive atmosphere
  • Technical task: Filtering, separation and regaining high-quality lubrication oil including all its additives
  • Operational task: Avoiding oil leakage (at bearings etc.) by creating a permanent slight negative pressure in the lube oil system
  • Global/environmental task:
    • High-efficiency filters prevent the emission of oil mist into the atmosphere
    • Protecting the environment by reducing oil mist emission down to < 3-8 mg/m³, cleaner than the German TA regulations of clean air and long­term protection of the environment
  • High quality based on 25 years of experience and multiple well-tested and proven technology
  • Modular system allows a simple constructional adjustment to the respective application
  • Rapid and long-term supply of spare parts
  • Long service life and easy change of the filter elements
  • Automatic oil recycling system
  • Environmental Technology Price for 1990
  • Project-specific planning and construction
  • Various options

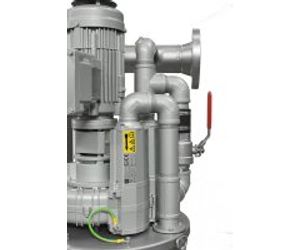

Explosion-proof versions/ATEX

  • The complete Contec Oil Mist Separator is certified in compliance with EC directive 94/9/EG (ATEX 100a) and can be operated in hazardous areas
  • Up-to-date in terms of state of the art safety technology
  • Suitable for application in explosive gas atmospheres category 2 and 3 (group II)
  • If requested taylor-made configuration in accordance with the ATEX directives for zone 1 (explosive atmospheres are likely to occur) or zone 2 (seldom and short-term explosive atmospheres) group IIC (propane, ethylene, hydrogen)
  • Drives Ex-pressure resistant, VIK, special voltages etc.

Redundant Series

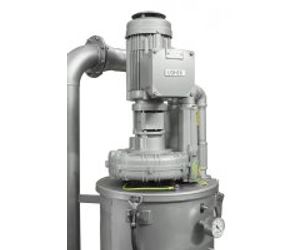

  • Redundant motor/blower unit on bracket or frame construction
  • Motor/blower units are controlled separately by hand and check valves
  • Motor/blower unit can be dismantled easily due to hard valves before and after blower
  • Easy maintenance due to laterally reversed construction of motor/blower units

Bypass

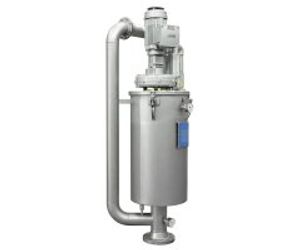

  • Complete bypass with integrated check valve
  • Compact integration of a bypass system that is normally installed separately to the OMS/OME
  • "Emergency“-bypass to avoid over pressure in the LOS

Bypass of external air

  • Hand valve for admixing system-internal, purified exhaust air to control the negative pressure
  • Suitable for applications in Zone 1 hazardous areas or in areas with very dirty or polluted environmental air

Additional micro filter head piece

  • Additional downstream air filter cell H11 for aerosol-free exhaust
  • Reduction of oil aerosols in the exhaust air to less than 2 mg/m³

Series without an blower

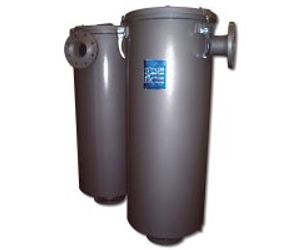

  • Filter system without motor/blower unit
  • Filtration and separation of oil mist for lubrication systems with sufficient positive pressure
