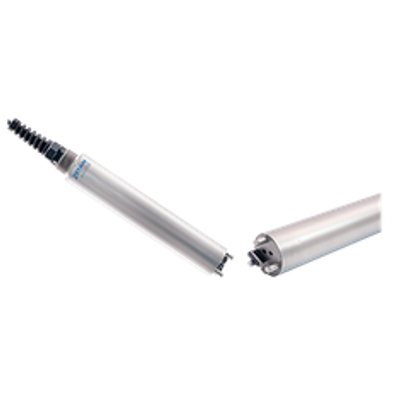

Zetian - Model ZCH-04 -Oil Sensor
The ZCH-1000 Oil Sensor is an intelligent sensor to detect oil content in water, adopting RS485 communication interface and standard Modbus protocol. It is equipped with built-in cleaning brush. Based on Fluorescence Detection Technology, it owns advantages of good selectivity, strong anti-interference capability, high sensitivity, no pretreatment and fast measurement. It integrates function of calibration, recording, analysis and diagnosis, etc.
Most popular related searches
oil content in water
water monitoring sensor
water quality sensor
water quality
water quality monitoring
waste monitoring sensor
oil-in-water
water sampling
water monitoring
waste quality monitoring
- With corrosion resistant shell and IP68, applicable to work underwater for a long term
- Auto cleaning function to remove attachments in water sample; maintenance-free
- Super-bright LED light source with high signal-to-noise ratio and strong stability
- Convenient and quick site installation of sensor; plug and play
- Use RS485 communication interface and standard Modbus protocol, convenient for integration
title: val
- Measurement range: 0-2700 ppb
- Measurement accuracy: ±5%F.S.
- Resolution: 0.1ppb
- Communication interface: RS485, standard Modbus protocol
- Detection limit: 1ppb
- Excitation wavelength: 360nm
- Detection wavelength: 460nm
- Working condition: 0℃~45℃, 0-6bar
- Working voltage: 12V/24V DC
- Cable length: Standard cable: 3m (customizable and extensible)
- Dimension: Diameter 30mm*length 185mm
- IP grade: IP68
