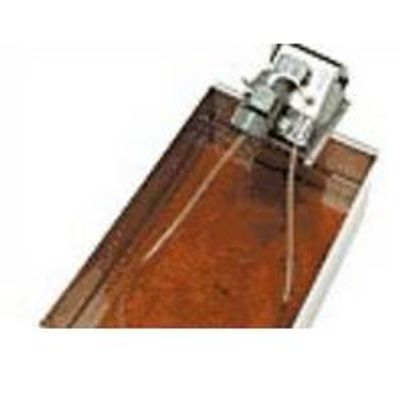

Sepra - Model 1U -Oil Skimmer
The 1U oil skimmer eliminates in a simple, rapid and reliable manner floating oil and fat on the surface of liquids of all types, such as lubro-refrigerating emulsions, cooling water, degreasing agents, wastewater etc contained in small tanks.
Most popular related searches
oil skimmer
skimmer
floating oil
cooling water
wastewater containment
water cooling
containment tank
degreaser
Technical data: FRIESS 1U model oil skimmer:
A small compact device for tanks with a max surface area of 1 m²
- Minimum tank-surface size: 400 mm x 400 mm
- Max conveyance height: 0,6 m
- Length of the collector tube: max 3000 mm
- Oil flow rate: 2-30 l/h
- Working temperature: -20 °C/+95 °C
- Drive system: 1 gear motor
- Power 0,09 kW
- Voltage: 230 V single-phase/ 400 V three-phase
- Dimensions (length x width x height): 128 x 224 x circa 270 mm
- Weight: Approx. 10 kg
The technical data provided illustrate the current state of the art and are not intended to guarantee certain characteristics of the products or their suitability for an actual purpose of use.
