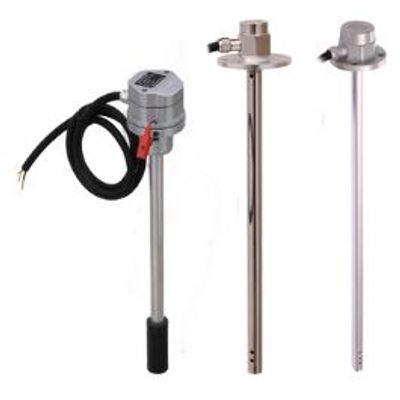

Sentec - Model SFL600 -Oil Volume Sensor
The SFL600 series oil volume sensor is based on the principle of radio frequency capacitance measurement and adopts a unique technology to realize automatic calibration. It is not affected by temperature and medium changes, and has high measurement accuracy and strong anti-interference ability. This technology fills the domestic gap and is at the international leading level. It can be installed in various occasions to accurately measure the oil level of gasoline, diesel, hydraulic oil and other weakly corrosive liquids.
We has made a major breakthrough in the field of capacitive digital sensor research. Through the unremitting efforts of engineers and technicians, it has made up for the shortcomings of traditional sensors such as low measurement accuracy, high environmental requirements and poor product stability. It has realized automatic calibration and is not affected by temperature and medium changes, filling the gap in the industry, and constantly Strive for high precision, intelligence and miniaturization.
- The use of military components makes the product more stable, stronger anti-interference ability, and can be adapted to harsher environments.
- Multiple signal output, compatible with all brand terminal equipment
- All-metal structure, sturdy and durable, not afraid of being beaten, basically no requirement for environmental conditions
- Using invention and utility model patented technology with independent intellectual property rights, the product is automatically calibrated and is not affected by temperature and medium, and it is suitable for any occasion.
- The product has no moving parts, and the failure rate is 0.3‰, which is the lowest failure rate among similar products.
- Using radio frequency capacitance tomography technology, the measurement accuracy is high, and the accuracy can reach 0.5 level, which meets the needs of customers for high-precision liquid level monitoring equipment.
- Detection range: automotive grade 100～1400mm, industrial grade 200～6000mm
- Accuracy level:
- When the measuring range is within 300mm; the accuracy level is 1.5;
- When the measuring range is from 300mm to 700mm; the accuracy level is 1.0;
- When the measuring range is greater than 700mm; the accuracy level is 0.5;
- Resolution: less than 0.1mm
- Pressure range: -0.1MPa～0.6MPa
- Medium temperature: -50～125℃
- Protection level: IP68
- Power supply voltage: 10～80VDC or 5～30VDC
- Fixing method: thread M20*1.5 or flange installation, special specifications can be customized according to requirements
- Explosion-proof grade: intrinsically safe ExiaⅡC T6 explosion-proof ExdⅡC T5
- Multiple transmission methods:
- Analog voltage signal: 0~3.3V, 0~5V, 0~10V
- Analog current signal: 4-20mA
- Pure resistance output: 3-300Ω/300-3Ω
- Digital signal: RS232, RS485, TTL, CAN, LIN
