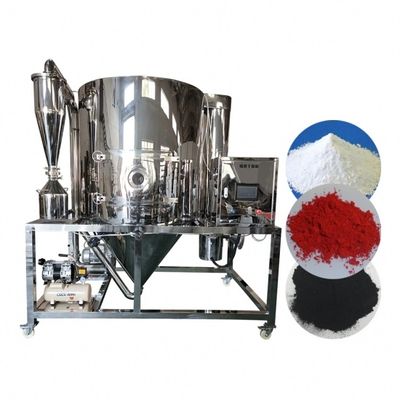

Ollital - Model OLT-SD10L -5L 10L 15L Milk Egg Instant Coffee Ceramic Powder Centrifugal Precio Para Spray Dryer Machine
The spray dryer is mainly suitable for the production of micro particle powder in laboratories of universities, research institutes and food pharmaceutical and chemical enterprises, and is widely applicable to all solutions, such as emulsion and suspension. It is suitable for drying of heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, etc. Because the material is only sprayed into a fog when the high temperature and instantaneous heating, so these active materials still maintain its active.ingredients after drying.
- Lead Time: 1-3 days
- Model Number: OLT-SD10L
- Minimum Order Quantity: 1
- Operation method: PLC
- Screen: Touch Screen
- Capacity: 10L
- Warranty:1 year
- Name: OLT-SD10L
- Inlet air temperature control: <30-300 °C.
- Outlet air temperature control: <30~150°C.
- Maximum evaporation of water: 200-1 OL/h.
- Centrifugal spray head transmission form: Electric.
- Speed: 40,000 rpm
- Spray disc diameter: 80mm
- Heat source: Electricity
- Electric heating maximum power: 18kw
- Total power: 22kw
- Dimensions L*W*H(mm): 2500*1600*2800
- Dry powder recovery: >98%
The spray dryer is suitable for: Beverages, spices and colors, milk, egg products, plant and vegetable extracts, pharmaceutically synthesized thermosensitive plastics, polymers and resins, aromatics, blood products, ceramics and superconducting biochemical products, dye soaps and detergents, food, adhesives, oxides, bone meal and tooth powder, etc.
The equipment uses the principle of water evaporation to remove the solvent contained in the solution. In particular, it is suitable for the powder preparation industry of most heat sensitive materials. The equipment is equipped with a bag type dust collector, which is safe, environmental protection and reliable.
