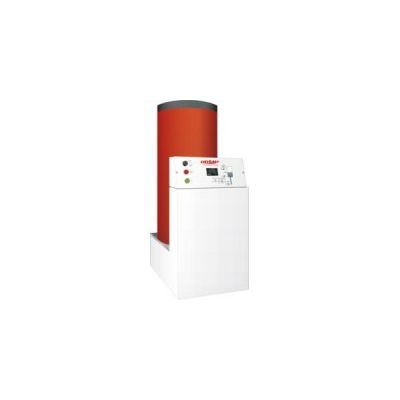

Olymp - Automated Pressure Control and Degassing System
Readily wired, tested and preset for: Fully automatic pressure station with leakage control, minimum pressure switch and adjustable overflow valve, indirect refilling with integrated system seperation. Electronically controlled system pressure with sensor, double solenoid valves and safety switch off function if pressure is too low. Expansion storage in isolated PP vessel. Deairation and air bleeding controlled by control unit.
- Air bleeding
- Deairation with optimisation
- Expansion
- Refilling
- Constant system pressure
Free and dissolved gases or air bubbles, formed during system filling and absorbed from parts of the heat system are removed using this unique de-aeration device. Opening a mineral water bottle produces gases which were dissolved in the water, the Olymp Automat uses the very same principal to remove from the installation all aggressive and destructive gases even from remote areas of the system. See Henry‘s Law abiabatic gas separation.
The Olymp Automats are ideal for the following uses:
- All sealed heating and chilled water installations up to 120°C designed to EN12828
- Chilled water sytems with up to a 40% glycol content to -5°C
- Also available for degassing/deaeration without pressurisation and top up functions
5 good reasons to use the Olymp Automat
Small footprint unit with 5 functions
Expansion - Automatic Pressure Maintnenance - Top up -Degassing/Deaeration - Dirt removal
Injector at inlet
Lets gasses escape producing water poor in dissolved gases (stripped) = „gas poor“ top up
Maintenance free Vessel
Long life - completely neutral to all system materials.
No Intermediate vessel required
The use of high quality solenoid valves suitable for a high inlet temperature means that no intermediate vessel is required.
Long Term Stability
Industrial grade controls, sensors and solenoid valves keep the pressure constant year on year. Especial long life through continuous use during Summer and Winter cycles.
