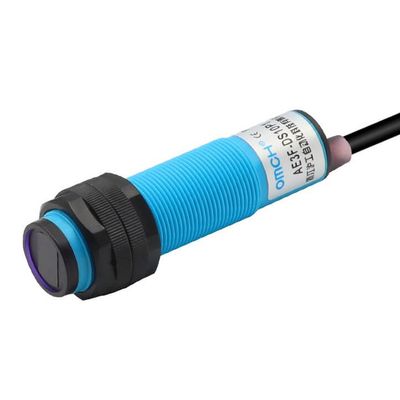

OMCH - Model AE3F-DS10P1 -Diffuse Photoelectric Sensor
The AE3F-DS series of diffuse photoelectric sensors are designed for precise and reliable detection of objects or changes in surface conditions. These sensors operate by emitting a beam of light and measuring the reflection from the detected object, making them suitable for a variety of industrial applications where contactless identification is required. This series includes various models such as AE3F-DS10N1/N2, AE3F-DS10P1/P2, and AE3F-DS10A1/A2, each offering specific functionalities tailored for different scenarios. The AE3F-DS sensors are particularly valuable in environments requiring high sensitivity and accuracy. Established in 1986, Zhejiang Hugong Automation has focused on developing and manufacturing automation devices like inductive proximity switches and photoelectric switches, providing significant advancements in industrial automation technology.
- Type : Round type
- Dimension : M18*1
- DC type : NPN NO : AE3F-DS10N1
- NPN NC
- AE3F-DS10N2
- NPN NO+NC
- AE3F-DS10N3
- PNP NO
- AE3F-DS10P1
- PNP NC
- AE3F-DS10P2
- PNP NO+NC : AE3F-DS10P3
- AC type : Two-wire NO
- AE3F-DS10A1
- Two-wire NC
- AE3F-DS10A2
- Detection range : 10cm±10%
- Detection target : Transparent/opaque object
- Detection range regulation : Sensitivity controller
- Response time : 1ms
- Connection delay : 1.5ms
- Light source : Infrared light 660nm
- Power supply : DC type: DC 12-24V (6-36V), impulse (p-p) 10% below;
- AC type: AC 110-220V (90-250V) 50/60Hz
- Withstand voltage : AC1000V 50/60Hz 1min between charging part and housing
- Voltage influence : Inside ±15% rated supply voltage range,
- at rated supply voltage value, inside ±10% detection distance
- Consumption current : N/P type: ≤20mA, A type: ≤1.7mA
- Control output : N/P type: ≤200mA, A type: ≤200mA
- Loop protection : N/P/D type: reversal connection protection,
- surge absorption, load short-circuit protection,
- A type: surge absorption
- Ambient temperature & humidity : Operation temperature/storage temperature: -30~65℃ (no freeze, no dew);
- Operation humidity/storage humidity: 35~95%RH
- Temperature influence : Temperature range -30~65℃, at +23℃, ±15% detection distance;
- Temperature range -25~60℃, at +23℃, ±10% detection distance
- Insulation impedance : ≥50MΩ (DC500 megameter) between charging part and housing
- Material : Housing: Nickel plated brass (ABS),
- Detection surface (lens): PMMA
- Protection class : IP67
- Cable length : 2m
