Omega - Model AF Series -Compressed Air Filter

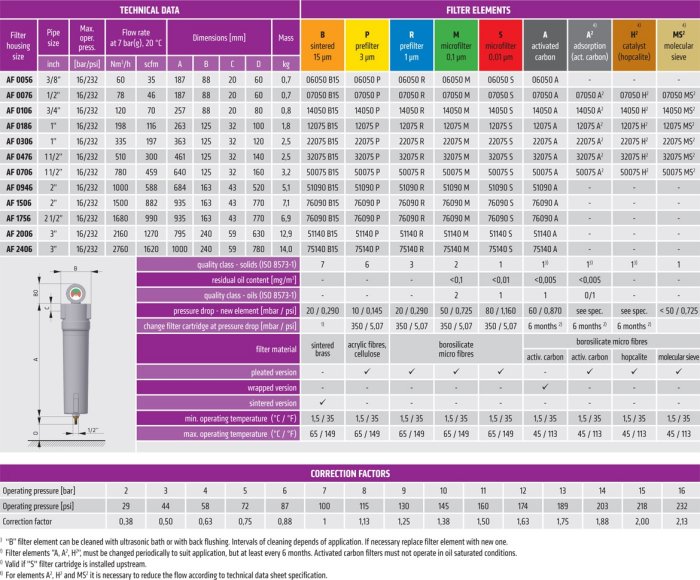

AF compressed air filters are designed for protection of the downstream compressed air system and equipment against defects and other failures. They ensure high efficient removal of solid particles, water, oil aerosols, hydrocarbons, odour and vapours from compressed air systems up to 16 bar. For any other technical gas please contact producer or your local distributor. Required compressed air quality according to standard ISO 8571-1 can be achieved with 9 different grades of filter elements (B, P, R, M, S, A, A², H² and MS²). Optional internal and external condensate drains should be used for efficient condensate draining from filter housing.
