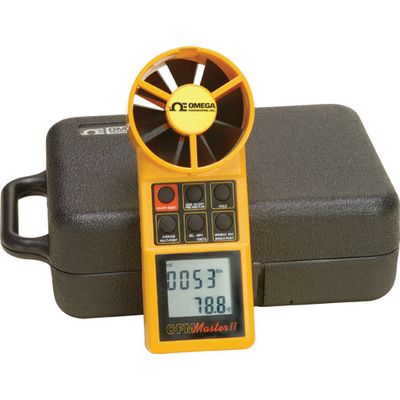

Omega - Model HHF92A -Rotating Vane Handheld Anemometer
OMEGA’s HHF92A rotating vane anemometer measures air velocity in imperial or metric units, including ft/min, mph, knots, metres/sec and km/h. It also displays temperature in °F or °C and has min/max/avg air velocity readings. A handy additional feature is the ability to enter a cross-sectional area value as a multiplier and the unit will then display volumetric flow in either cubic metres per second (cms) or cubic feet per minute (cfm).
Most popular related searches
rotating vane anemometer
air velocity monitoring
vane anemometer
velocity monitoring
anemometer
air monitoring
anemometer measurement
portable anemometer
flow indicator
air flow monitoring
- Measures Air Velocity and Temperature
- Volumetric Readings for a Fixed CSA
- Dual LCD Display
- Min/Max/Avg Air Velocity Measurements
- Auto Power Shut Off
- Battery Powered
- Air Flow Resolution:
- 80 to 6900 ft/min 1.00
- 0.4 to 35 m/sec 0.01
- 0.9 to 78 mph 0.10
- 0.8 to 68 knots 0.10
- 1.4 to 126 km/hr 0.10
- Accuracy:
- 80 to 6900 ft/min ±3% of full scale
- 0.4 to 35 m/sec ±3% of full scale
- Temperature Range, Resolution and Accuracy:
- -10 to 50°C, 0.1°C, ±0.6°C
- 14 to 122°F, 0.1°F, ±1.0°F
- Battery: 9V alkaline (included)
- Battery Life:
- 100 hr (under normal usage)
- Display: LCD
- Display Size: 37 x 42 mm (11/4x 15/8")
- Max. Reading: 9999
- Dimensions:
- 183 x 76 x 45 mm (7.2 x 3 x 1.8")
- Fan Diameter: 70 mm (27/8")
- Auto Power Off: 20 minutes
- Data Hold: Standard
