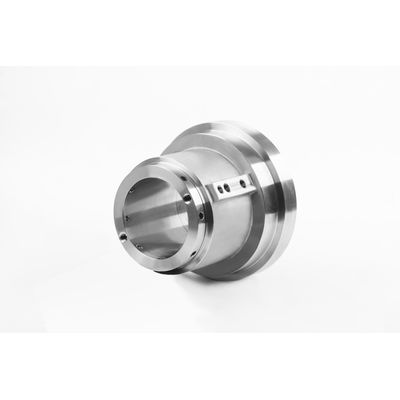

OMEGA - Model Series 41 -Around-the-Shaft Air / hydraulic Rotary Unions
FromRotary Union
Rotor supported on combination of deep-grove ball bearing and bush-bearing, Aluminum, Stainless Steel housing, Hard-chrome Plated / Chrome Oxide coated Stainless steel Rotor. Special elastomer seals, Suitable for around the shaft mounting on large shafts, For Pneumatic / Hydraulic actuation.
Most popular related searches
| Media | Pressure | Temperature | Rotational Speed |
| Air | 10 bar | 70°C | 100 rpm |
| Hydraulic Oil | 250 bar | 70°C | 20 rpm |
| Port Size: 1/8” BSP / NPT TO ¾” BSP /NPT |
| Around the shaft mounting up to 300 mm shaft dia. |
| Higher diameters available on demand. |
