Omega - Model XF3017R/25 - 530DF30 -Bandpass Filter

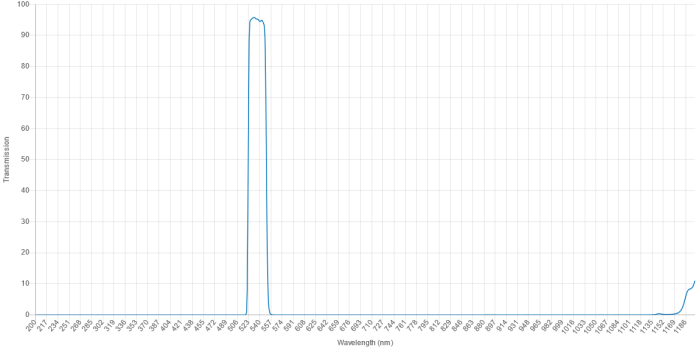

The spectral curve and ascii data is a typical representation of this filter’s performance, but will vary due to production and design variations. Omega only guarantees this part to meet the product specifications listed.
Most popular related searches
- Center Wavelength (nm): 530.00
- Center Wavelength Tolerance (nm): +6/-0
- FWHM Bandwidth (nm): 28.00
- FWHM Bandwidth Tolerance (nm): +3/-3
- Transmission: ≥ 80% peak
- Blocking: ≥ OD5 avg, OD4 min UV-504nm ≥ OD4 out of band highside to 825nm
- Transmitted Wavefront Distortion: λ/4 RMS over 80% of CA
- Angle of Incidence: 0
- Minimum Surface Quality: Assembly per MIL-C-48497A (F scratch/ F Dig)
- Coating Type: Protected Coating
- Filter Type: Bandpass
- Half-cone AOI: 0
- Fluorescence Component: Emission
- Flatness: ns
- Parallelism: ≤ 15 arc seconds
- AR Coating: BBAR on mask side only
