OmegaModel XF467 -Red Triple Band Premium Fluorescence Filter Set

SHARE

This filter set is optimized for use with common blue, green and red emitting fluorophores such as DAPI/FITC/Texas Red or proteins BFP/eGFP/mCherry. Can be used with visual detection, a CCD camera or color film for image capture. This set replaces XF66. Our standard filter sets are offered with 25mm round excitation and emission filters and 25.7x36mm dichroics. These sizes are appropriate for a wide number of microscopes. Other sizes are available for an additional fee by clicking "request a quote".

Most popular related searches

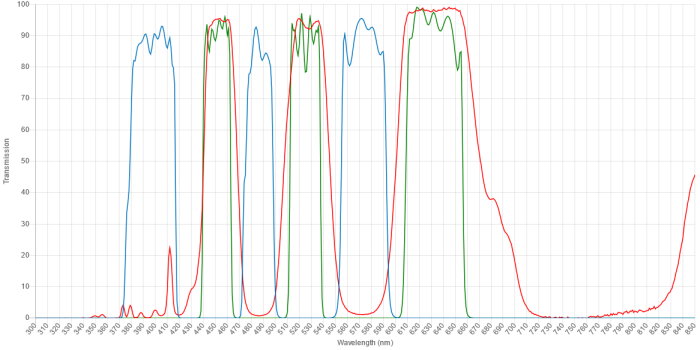

  • Transmission: ≥80% avg 385-410nm ≥ 90% avg 475-500nm ≥ 90% avg 555-590nm
  • Blocking: ≥ OD4 avg 420-470nm, 510-545nm & 600-1150nm
  • Transmitted Wavefront Distortion: ns
  • Angle of Incidence: 0
  • Minimum Surface Quality Assembly per MIL-C-48497A (E scratch/ E Dig)
  • Coating Type: Surface Coating
  • Filter Type: Triple Band
  • Filter Application: Triple Band
  • Half-cone AOI: 0
  • Fluorescence Component: Excitation
  • Flatness: ns
  • Parallelism: ns
