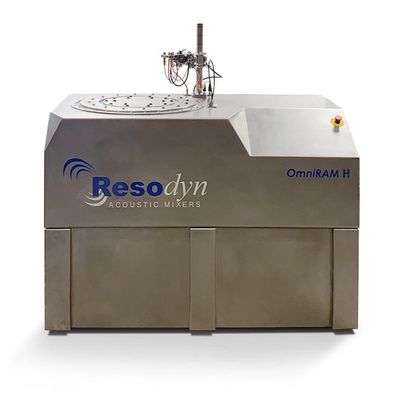

OmniRAM - Model H -Energetics And Hazardous Material Mixer
Specifically designed for mixing hazardous and energetic materials, the OmniRAM H introduces significant benefits. Government and defense customers rely on ResonantAcoustic® Mixers’ technology for high quality, safe, and low-cost processing of energetic and hazardous materials. The OmniRAM H delivers better results, improved efficiency, and new product opportunities at a payload capacity that bridges LabRAM II H developmental capabilities with larger RAM H batch and continuous systems.
- Mixing and processing up to 11 lb (5 kg) of any combination of
- Solids/Powders – from nano-scale, up
- Liquids/Gases
- Viscous/Slurry materials
- Coating, Milling, Grinding Processes
- Concurrent Mixing and Vacuum at temperature
- Concurrent Vacuum and Curing at Temperature
- Jacketed Mixing Vessel provides optional temperature control from 302°F (150°C) heating to 0°F (-18°C) cooling
- On-board control of processing accessories
- Integrated vacuum control unit
- Jacketed vessel temperature control
- Develop, store, and secure up to 100 recipes for permanent recording of operations and measured results
- Monitor mixing parameters in real-time
- Download processing data for analysis and documentation
- Adaptable to Resodyn Continuous Acoustic Mixing technology
- Feeder Systems
- Continuous processing chamber stack
- Order of magnitude higher processing capacity
- Up to 11 lb (5 kg) payload processing capacity
- Intense, but gentle acoustic mixing for rapid, highly repeatable, ultra-high quality results
- All housing and enclosure materials are sealed, purged, 304L Stainless Steel
- Redundant ground paths mitigate static charge build-up
- Remote Control Panel (operation up to 2.5 miles (4 kilometers)
- Laptop based human machine interface (HMI)
- Integrated, color, touch-screen operating system
- Sealed, hazardous rated, SS 304 mixing platform prevents entry of mixing materials into the enclosure.
- Fully enclosed, interlock-able acoustic mix chamber
- Height-adjustable holder accepts many vessel types
- Multiple level security and access control
- Temperature sensor – 316L resistance temperature detectors (RTDs) with m12 connector (optional)
- Hazardous Location Vacuum Pump
- Jacketed Vessel Temperature Control
- Custom Components
General:
Model: OmniRAM H
Technology: ResonantAcoustic® Mixing
Intended Use: Laboratory, Development, Pilot and Small-scale Production Mixing
Unit Dimensions: 42″ H x 60″ W x 34.8″ D (cm: 177.8 x 152.4 x 88.39)
Unit Weight: 3,200 lbs (1451 kg)
Country of Origin: USA
Certifications: CE Certified, UL Certification Available
Operating Specifications:
Maximum Payload Capacity: 11 lb (5 kg)
Compatible Materials: Solids, Liquids, Pastes, High Viscosity
Max Vessel Acceleration: 100g at 60 Hz
Max Operating Sound: N/A (Machine operated in unmanned environment)
Sealed Acoustic Chamber: Yes
Included Vessel Holder Assembly: Application-specific
Included Vessels: Application-specific
Control Specifications:
Human Machine Interface: Full Color Touch Screen
Operating System: Proprietary On-Board
Programable Mix Recipe Storage: Yes
Data Logging: Yes
Remote Operation: Yes
Power Specifications:
Required Voltage at 60 Hz: 240 VAC/1 Phase
