OMP - Model FP 800 -Filter Press

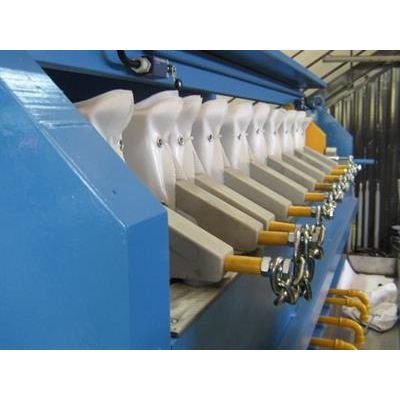

Main technical features: N°1 Frame made of tube 120×80 joined by welds. N°2 Box-like fixed heads made in thick sheet, joined by TIG welds. N°1 Mobile head having the same characteristic of the fixed ones, sliding on treated steel castors and guides made from the tie rods that connect the fixed heads. N°1 Hydraulic cylinderØ200mm. N°1 Hydraulic centralinewith 7,5 kW and maximum pressure of 200 Bar. N°1 Laminar bundle consisting in a minimum of 6 plates with a maximum pressure of 16 Bar, made in polypropylene and coated with polypropylene filtering elements. Plate 800 24 litres of mud every 12 minutes.
