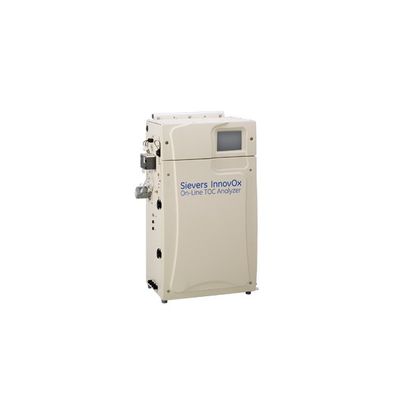

InnovOx Sievers - On-Line TOC Analyzer
Real-time continuous monitoring for process control and regulatory compliance. Sievers InnovOx On-Line Total Organic Carbon (TOC) Analyzers offer continuous organics monitoring and multi-stream capabilities. The multi-stream capability allows user to run up to five samples if processes do not require continuous monitoring. The Sievers InnovOx On-Line has a dynamic operating range of 50 ppb to 50,000 ppm. Its patented Supercritical Water Oxidation technique allows for superior TOC recovery, accuracy, and instrument robustness.
Most popular related searches
online total organic carbon analyzer
online TOC analyzer
TOC analyzer
total organic carbon analyzer
online TOC
supercritical water oxidation
total organic carbon
wastewater plant optimization
EPA method
continuous organics monitoring
The analyzers are compliant with US EPA Method 415.1, US EPA Method 415.3, US EPA Method 9060A, CEN Method DIN EN 1484, ISO 8245, and ASTM D5173.
Wide dynamic range up to 50,000 ppm TOC
- Patented supercritical water oxidation (SCWO) for superior TOC recovery and high reliability
- Run up to five sample streams
- Reliable NDIR detection technology with no moving parts
- Straightforward operation
- Versatile measurement modes include TOC (TC-IC) or NPOC
- COD/BOD reporting
- Handles tough TOC samples, like cellulose and brine
Applications
- Biological wastewater plant optimization
- Wastewater monitoring
- High salt and brine monitoring
- Industrial monitoring
Operating Specifications*
- Analysis Modes NPOC, TOC, (TC-IC), TC, IC
- Range 0.05 to 50,000 ppm TOC
- Precision RSD ≤3% of reading at >5 ppm NPOC or TOC
- Accuracy Greater of ±3% or ±.25 ppm, 1 to 100 ppm, NPOC or TOC
- Linearity R2 ≥ 0.995, measured as NPOC
- LOD <50ppb
- TOC Calibration Stability Up to 6 months
- Analysis Time 2.6 to 8.3 minutes
- Particle Diameters in Sample ≤800 µm diameter
- Sample Temperature 10-60 °C (41-140 °F)
- Ambient Temperature Range 10 to 40 °C (50-104 °F)
- Sampling Ambient pressure, 0.08 to 2.82 mL sample volume per analysis
Analyzer Specifications
- Sample Capacity Up to 120 with optional Autosampler** (or single standard vial port)
- Outputs Ethernet Port (1); USB Ports (3)
- Display Color LCD w/touch-screen
- Power 100 – 240 ± 10% VAC, 50 – 60 Hz, 400 VA
- Installation/Overvoltage Category II
- Dimensions H: 52.05 cm (20.5 in.); W: 32.26 cm (12.7 in.); D:58.42 cm (23.0 in)
- Dimensions (Autosampler) H: 52.2 cm (20.5 in.); W: 31.1 cm (12.25 in.); D: 53.3 cm (21.0 in.)
- Weight 22.41 kg (49.4 lb); 14.1 kg (31.1 lb) for optional Autosampler
- Safety Certifications CE, ETL listed. Conforms to UL Std. 61010-1. Certified to CSA C22.2 NO. 61010-1
Environment
- Maximum Relative Humidity Up to 95%, non-condensing
- Normal Operating Indoor use only. Keep instrument and reagents out of direct sunlight.
- Maximum Altitude 3,000 m (9,800 ft)
- Pollution Degree 2
- High-temperature sampler: allow for monitoring of samples up to 85ºC. Ideal for use in steam condensate and cooling tower applications
- Wastewater sampler: configurable for either low to moderate or high levels of particle content without the maintenance of filtering systems
- Fail safe: monitors for the presence of sample flow and adequate supply of reagents/check standards to increase reliability
- Exterior pumps: for applications where a pressurized sample is not available
