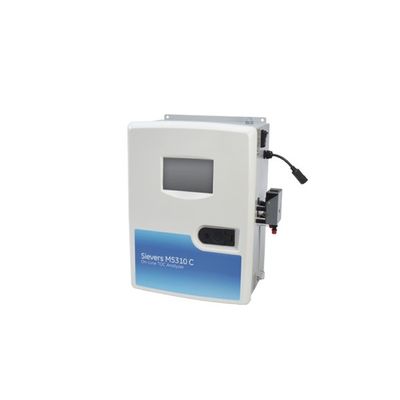

Sievers - Model M5310 C -On-line TOC Analyzer
Dual-stream, continuous monitoring designed to meet regulations and optimize processes. The Sievers M5310 C On-Line Total Organic Carbon (TOC) Analyzer offers both continuous and discrete grab samples with dual-stream capabilities. Online capabilities allow for real-time monitoring, while the Integrated On-Line Sampling System (IOS System™) allows for the introduction of external samples. Offering an operating range of 4 ppb to 50 ppm, this analyzer is engineered to support regulatory compliance and processes optimization goals.
Most popular related searches
online TOC analyzer
online TOC
online total organic carbon analyzer
TOC analyzer
total organic carbon analyzer
total organic carbon
grab sampling
TOC online analyzer
wastewater stream
stream sampling
The dual-stream and continuous monitoring capabilities of the Sievers M5310 C On-Line enable efficient, real-time monitoring of two independent sample sources. The analyzer provides automated calculations of percent TOC removal for influent and effluent streams. Make real-time decisions with the Sievers M5310 C On-Line TOC Analyzer.
- Provides readings in only two minutes
- Automated calibration, verification, and data analysis enable unattended operation
- Automatically calculates percent TOC removal for influent and effluent streams or samples
- The Autoreagent feature automatically establishes optimal flow rates for each sample
- The grab-mode, alphanumeric labeling feature allows individual labeling of each grab sample for easy recall later on
- Two-stream sample line configuration enables efficient sampling of two independent sample sources, without the need to alter the initial inlet setup
- Pre-calibrated for simple installation
- Minimal maintenance — typically just a few hours per year
- Self-contained with small footprint and internal reagent packs — no external chemicals, catalysts, or gas supplies required
- Easy data communications — export or collect data via USB, 4-20 mA, or Modbus TCP/IP outputs
- Integrated On-Line Sampler (IOS) system allows testing of external samples and standards without removing the analyzer from the continuous water source
Operating Specifications*
- Range 4 ppb to 50 ppm
- Precision < 1% RSD
- Accuracy ± 2% or ± 0.5 ppb, whichever is greater
- Display Readout 3 significant digits
- Sample Type On-line continuous or discrete grab sample, timed on-line, TOC removal on-line, TOC removal grab
- Calibration Typically stable for 12 months
- Analysis Time 2 minutes
- Sample Temperature** 5–95 °C (41–203 °F)
- Ambient Temperature 4–40 °C (41–104 °F)
- Sample Pressure Up to 100 psig
- Required Sample Line Flow Rate >50 mL/min (for on-line mode)
- Instrument Sample Flow Rate 0.5 mL/min
Analyzer Specifications
- Inlets One stream, or two-stream inlet (option)
- Outputs 4-20 mA outputs (3); alarm outputs (4); binary input (1); USB device port (1), USB host ports (2); Ethernet
- Display 7” WVGA 800x480 pixel, Color LCD w/ touch-screen
- Power 100 – 240 V~, 50 – 60 Hz, 100 VA
- Dimensions H: 54.9 cm (21.6 in); W: 45 cm (17.7 in); D: 26.5 cm (10.4 in)
- Weight 16.2 kg (35.6 lb)
- Safety Certifications ETL, CE see Declaration of Conformity
- Enclosure Rating IP-45
Environment
- Maximum Relative Humidity 0 - 95%, non-condensing
- Maximum Altitude 3,000 m (9,800 ft)
- Pollution Degree 2
- Prefilter Kits: provide sample conditioning to ensure optimal instrument performance. Three application-specific kits are available: normal use, heavy use, and treated drinking water
