BSI - Model CON-X -On-line XRF Conveyor Analyzer

The analyzer detects elements from Al (Z=13) to U (Z=92)

FAST PAY-BACK due to:

• Economy of raw material
• Recycling of used material
• Time saved due to rapid real-time analysis.

• on-line non-destructive analysis of material composition directly above a conveyor belt,
• high precision and stability of the results in a severe environment: dust, low/high temperature and humidity,
• independence of the measurement results from lump size, relative humidity and distance in the allowable range (6-25 cm),
• simple and convenient operation and service,
• empty belt exclusion algorithm,
• remote support through Internet,
• instrument control and data results provided using OPC communication, 4-20 mA output, Ethernet

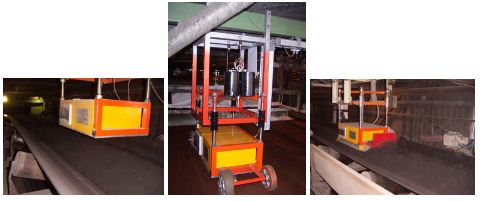

On-line XRF conveyor analyzer CON-X is used to identify and measure the concentration of the elements and minerals in ores and materials on a conveyor belt. The analyzer detects elements from Al (Z=13) to U (Z=92).

• economy of raw material,
• recycling of used material,
• time economy due to the express analysis.
