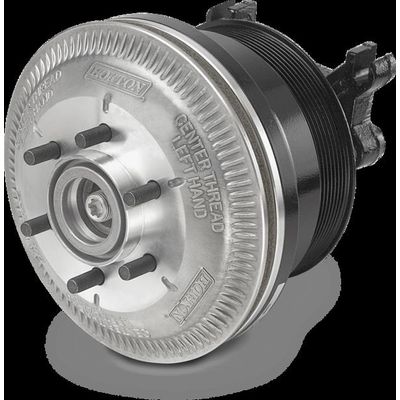

DM Advantage - On/Off Highway Drives for Off-Highway Vehicles
FromHorton, Inc.
DM Advantage On/Off Fan Drives are spring-engaged and air-disengaged for maximum efficiency. They are lighter, have high torque for turning larger fans, a fail-safe design and a low parts count for simplicity. The advantage is yours with the best, proven solution for the highest-heat under-hood applications. Horton’s latest innovations assure you of maximum reliability and long-life performance.
- Variety of off-highway equipment
Actuation: Spring-engaged, air disengaged
Minimum air pressure to disengage: 620.5 KPA [90 psi]
Out of box torque: 271 N-m [2400 in.-lbs.]
Friction disc diameter: 200.6 mm [7.9 in.]
Fan blade capacity (diameter): 813 mm [32 in.]
Engine horsepower range: 186 - 447 KW [250 - 600 HP]
Friction liner wear limit, minimum thickness: 5.76 mm [0.23 in.]
- Premium sheave bearing and long-wearing friction liner for maximum reliability and long life
- On- and off- operation reduces noise and conserves fuel
- Low parts count for ease of installation and maintenance
- High torque capable of turning larger fans for a range of applications
- Engine coolant temperatures kept at optimum operating efficiency to increase durability
- Superior solution for some of the highest heat-under-hood applications
