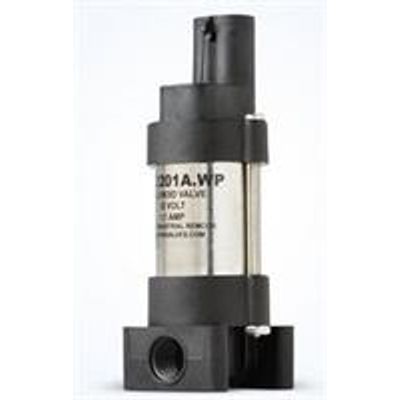

TIR - Model SV.2201A.WP -On/Off | Low Flows Small Solenoid Valves
The Small Solenoid Valves are ideal for placement in end nozzles, foam markers, small sprayers and chemical injection systems. With quick component attachment and fully encapsulated, waterproof coils, these valves give you total, precise control over the spray tip and air flow.
Most popular related searches
- Type: Direct Operating On/Off
- Maximum Pressure: 125 PSI (861kPa)
- GPM: 0-1 (3.79 LPM)
- Pressure Drop: 5 PSI at 1 GPM
- Std Current Draw: 1.1 AMPs
- CV Rating: .45
- Inlets/Outlets: .25" NPT Female Inlet
- .25" NPT Female Outlet
- Push-To-Connect Attachments Available
- Voltage: 12-Volt DC
- Valve Housing: Glass-Filled Nylon
- Wetted Metal Parts: 304 and 430F Stainless Steel
- Coil: Epoxy Encapsulated
- Valve: Normally Closed
- Diaphragm/Seat/Seals: Viton
- Terminals: Weather Pack
- .25" Spade Available
