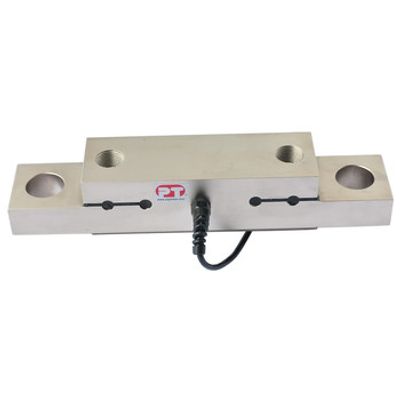

PT Limited - Model PT9011OVL -Onboard Vehicle Load Cell (15t)
FromPT Limited
The PT9011OVL is a tool steel beam sealed to IP67, electroless nickel plated and ideally suited to onboard vehicle weighing. The PT9011OVL can also be used in standard weighing installations where a rigid connection is required to keep the load in place and can support various axels or bearings in industrial weighing. Each load cell comes with the standard PT Ltd serial numbered accuracy certificate and our famous 3 year warranty.
Most popular related searches
- Easy installation
- Sealed to IP67 standards
- Ideal for truck/trailer onboard weighing
- Suitable for agricultural weighing
- Output at Capacity: 1.25±10% mV/V
- Combined Error: < 1.000% FSO
- Zero Balance: < 2% Capacity
- Fixing Torque 1"-14 tpi: 230Nm/170ft-lb
- Operating Temperature Range - 35 ~ +70 C
- Storage Temperature Range: - 50 ~ +80 C
- Compensated Temperature Range: - 10 ~ +40 C
- Cable Type: 4 core shielded
- Cable (cont.): PUR sheath
- Cable Diameter/length: 5.0mm, 10m long
- Service Load: 100% Capacity
- Safe Load: 120% Capacity
- Ultimate Load: 150% Capacity
- Input Resistance: 387Ω ± 25Ω
- Output Resistance: 350Ω ± 3.5Ω
- Insulation Resistance: > 5000 MΩ (@ 50 VDC)
- Excitation Voltage (Rec): 5 ~ 15V AC/DC
- Excitation Voltage (Max): 18 V AC/DC
- Material: Nickel Plated Alloy Steel
- Protection: Adhesive sealed, IP67
- Excitation + ve: RED
- Excitation -ve: BLACK
- Signal + ve: GREEN
- Signal -ve: WHITE
