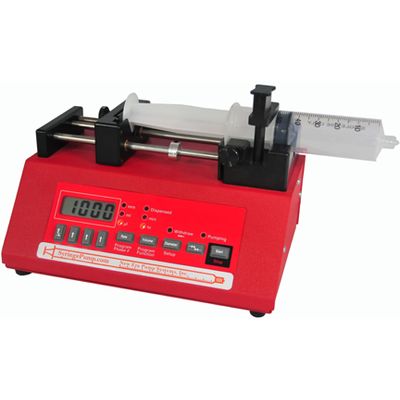

New-Era - Model NE-1000 -One Channel Programmable Syringe Pump

• Space Saving Chassis: Foot print size of only 5 3/4" x 8 3/4"
• Won`t take up unnecessary space on your laboratory or production bench
• Includes all the advanced functions and programming features of the NE-1000 series
• Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
• Download Brochure
• Download User Manual

Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump
Using 2 NE-1000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion.

• Fully programmable; automation capable
• Operates stand-alone or from a computer
• Infusion and withdrawal
• Set a single pumping rate and/or dispensing volume
• Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
• Network, control, and monitor up to 100 pumps with one computer
• Worldwide power supplies available
• Motor stall detection
• Dispensing accuracy of +/-1%
• Unlimited lifetime technical support
• Two year warranty

• Available in Higher Pressure (NE-1010), and Microfluidic (NE-1002X) and OEM (NE-500) versions
• Firmware Upgrades available to enable Linear Pumping and to increase Pumping Program Memory

The NE-1000 produces about 15 lbs of linear force at top speed and about 35 lbs at slow speeds. 10 ml/hr is an example of slow speed. The pressure that can be generated is relative to the syringe size. On a 60 ml syringe, this would roughly produce about 30 psi.

The high pressure version, NE-1010, will approximately double the pumping force at the same speeds.
