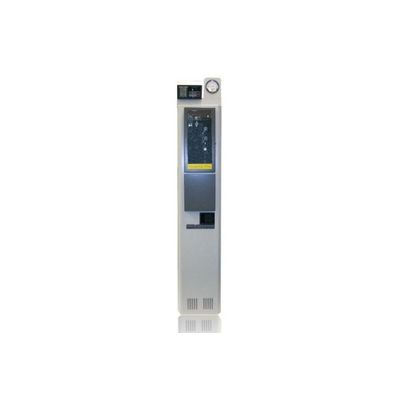

SEMI-GAS Centurion - Model C1-S -One Cylinder Semi Automatic Gas Cabinet
SEMI-GAS supplies SEMI S2 certified, production-ready ultra high purity gas source systems, distribution systems and control technology to leaders in the Semiconductor industry and related high-tech fields. Built to address the most rigorous precision and purity demands of these specialized applications, SEMI-GAS® solutions are globally renowned for their premier levels of safety, quality, and performance.
Most popular related searches
helium leak detection system
stainless steel enclosure
exhaust duct
hazardous process
fire sprinkler
safety glasses
process monitoring
helium test
contaminant monitoring system
exhaust sensor
DESIGN STANDARDS
- Conforms to SEMI S2 Standards
- UL Labeled
- Conforms to Uniform Building and Fire Codes
- Upholds Sample Validation Testing Standards « Helium Leak Tested to lxlO`9 atm-cmVsec
- Equipped with GigaGuard™ ESS Controller
FEATURES
- Safely Dispenses Hazardous Process Gases
- Automatic Shutdown in the event of an Alarm Trip
- Utilizes Manual Purge Process
- Monitors Flow. Pressure. Exhaust and Fire Sensors
- Intuitive Operating Interface and Control
- LED Lights Provide Constant System Status
- Continuously Monitors System Conditions for Alarms
- Remote Outputs for System Status and/or Shutdown
ENGINEERING DATA
- Dimensions: 83T X 15*W X 23"D
- Exhaust Duct: 6" Diameter
- Window Open Duct Flow: 350 SCFM
- Voltage: 100 to 250 VAC. 1 Phase
- Frequency: 50 to 60 Hz
MATERIALS OF CONSTRUCTION
- Welded 11 Ga Steel Enclosure
- Self-Closing and Self-Latching Door
- Self-Closing and Self-Latching Window
- Heavy Cast Aluminum Cylinder Brackets
- Polycarbonate Face Shield
- Durable. Corrosion Proof. Non-Skid Floor Mat
- UL Approved Fire Sprinkler
- 1/4" Thick Safety Glass Window
