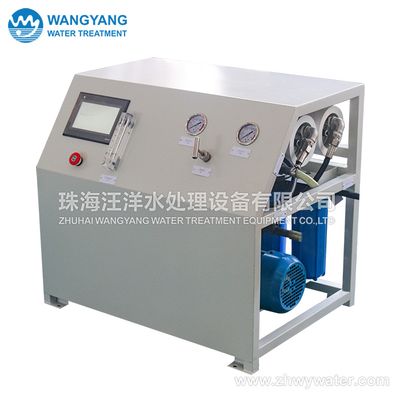

WANGYANG - Model WY-FSHB-3 -One-key control seawater desalination system for yachts
The Seawater Desalination System adopts the international advanced reverse osmosis technology and is designed by optimizing the system. We have specially designed according to the special application of the yachts, featuring small size, light weight, land occupation, convenient installation and strong adaptability. The equipment is easy to operate and maintain. As long as it provides sea water, power supply, start-up and water production, the equipment has high salt rejection rate, stable performance, safety and reliability, and novel design. The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into fresh water in accordance with the National drinking Water Sanitation Standard (GB5749-2006).Model: WY-FSHB-3
Water yield: 150L per hour
RO product water quality: National Standard for Drinking Water(GB5749-2006)
Desalination rate: >98.5%
Output water saltness: <500mg/L
Recovery rate: 20%(Depending on temperature and inlet water quality)
Operation pressure: <6.5Mpa
Power: 1.75KW
Voltage: 380V / 50Hz / Three phase
Protection grade: IP54
Dimensions: 800*600*700mm
Net weight: 100Kg
* 1. The amount of water produced refers to the amount of water produced under the conditions of an inlet water temperature of 25 ° C, a salt content of 35,000 mg/L, and an operating pressure of 5 MPa.
2. Equipment can be customized according to customer requirements.
3. Operating environment: roll ±22.5°, avoid sun and rain.
System function
1. High-pressure unloading, when the high-pressure pump outlet pressure exceeds 6.2MPa, the equipment automatically stops and protects and emits an audible and visual alarm.
2. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
Main accessories
● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand，1pcs
● Membrane Housing: 1000PSI, 1 Core, FRP, 1pcs
● Precision Filter: 10" x 5μm, UPVC
● High Pressure Pump: Brass
● Feed Pump: SUS316, CNP brand
● Touch Screen: Omron brand
● Electric Element: Schneider brand
Equipment list
1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories
