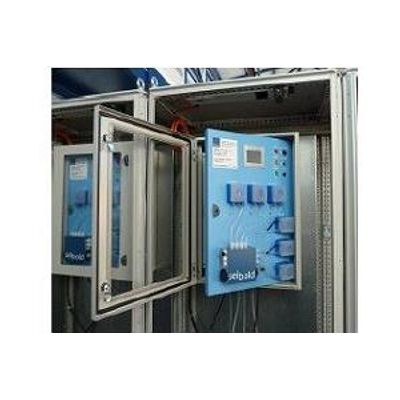

Alban Berg - Online Analyser for Copper and Nickel

Industry. Nickel and Copper are used in alloys (stainless steel), electroplating, foundries, catalysts, welding rods and coinage, and can be found in electronic equipment, construction materials, aerospace equipment and consumer goods such as batteries, paints and ceramics.

Drinking water. Copper concentrations in drinking-water vary widely, with the primary source most often being the corrosion of interior copper plumbing. A guideline value of 1.5 mg/litre was recommended for copper in drinking water.

Toxicity. Inhaled nickel compounds are carcinogenic to humans and that metallic nickel is possibly carcinogenic. Allergic contact dermatitis is the most prevalent effect of nickel in the general population.

Method

The Metal is measured as chelate complex between metal ions in the waste water and sensitive spectrophotometric reagent dye. Change of the intensity of the visible light throughout measurement chamber containing formed metal complex is directly proportional to metal concentration.

• Non dangerous chemistry and reagents.
• Robust design.
• Minimal maintenance.
• Easy handling.
• High accuracy and precision.
• Suitable for mission critical applications.
• Automated cleaning and calibration.

Measurement method
Spectrophotometric (LED, detector)

Measurement interval
Continuous; Discontinuous (programmable, external start)

Sample and Reagents consumption per measurement
Sample: ~ 75 - 200 ml
Seibold Buffer and Reagent: ~ 3 ml

ENVIRONMENTAL DATA
Ambient operating temperature, sample temperature: 5 to 40°C
Ambient operating humidity: Up to 95 % RH non-condensing

ELECTRICAL DATA

Power supply
Supply voltage: 220 … 230 V AC, 50…60 Hz (110 V AC or 24 V DC, optional)
Power consumption: approx 50 VA
Output signal: 4…20 mA, MODBUS, Profibus DP.

Screen
Color, TFT, liquid crystal display (LCD) with built-in backlight and brightness adjustment.

MAINTENANCE
Maintenance interval: 6 months
