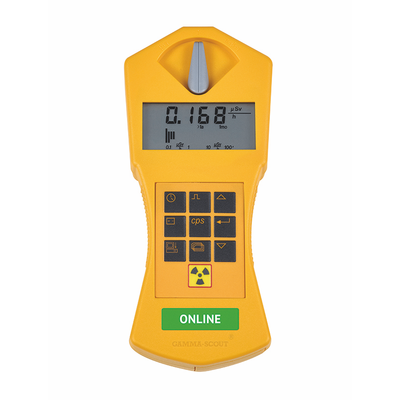

Gamma-Scout - Online / RealTime Radiation Detector
This model has the option of real-time viewing, meansthe simultaneous transmission of measured values to an external screen.Power is supplied via the USB interface. The GAMMA-SCOUT ONLINE also offers (as the only model) the ability to evaluate the stored values via graphics tool. The storage as well as the ticker and the alarm function remain active during data output. The GAMMA-SCOUT ONLINE also contains all the features of the alert model.
The GAMMA-SCOUT® can transmit both – the acquired pulses as well as the dose and dose rate to a connected PC at the same time as the measurement runs.
The Gamma-Scout® ONLINE Model is the single one, which delivers a graphics tool in its software package for graphical evaluation of the measured values.
This model features an acoustic alert when radiation level exceeds a user programmed threshold.
The user can set an acoustic ticker which activates with each gamma pulse detected.
Easy Reading
In measuring mode, the display shows the current radiation measurement reading every 2 sec. The display also temporarily shows the average H of the last day (24h, 12 am to 12 am).
Energy-Saving Constant Operation
The GAMMA-SCOUT® monitors radiation day and night and logs data for later download. The “RECHARGEABLE” model works with a rechargeable battery. When the GAMMA-SCOUT® is connected to a PC, the deviceis powered via the USB port. This protects and charges the battery.
Measures α-rays
Thanks to its LND sensor, Gamma-Scout measures α-rays in addition to γ- and β-rays.
Large Scale
GAMMA-SCOUT® is calibrated to measure across a wide scale (0.1 up to 1,000 μSv/h)..
Tested Calibration
Each GAMMA-SCOUT® radiation meter is subjected to a final test. This test is supervised by the Institute of Radiation Protection; a state university for applied technology. The tested device must be within a confidence interval of 5 % against a master, which in turn, is adjusted to a gauged reference Cs 137 emitter and the ODL.
Dose Rate and Dose
GAMMA-SCOUT® can be used as a dose meter (cumulative radiation).
Data Storage
GAMMA-SCOUT® stores all registered pulses in its internal memory and keeps them ready for you to use when desired. 32,000 readings: For constant monitoring, storage of environmental data is set at an interval of one value all 2 hours, which equates to 7 years of memory capacity. The user can set smaller intervals, which fills the memory capacity sooner.
Data Read-Out via Microsoft WINDOWS
The measured values can be read on Microsoft Windows (WIN 7 up to WIN 10).
Data Read-Out via MAC OS X
The measured values can be read on MAC OS X.
Flexible Display of Data
The dose rate may be displayed in Sievert or Rem.
Allowed on flights
GAMMA-SCOUT® may be carried on board of airplanes.
Certification
GAMMA-SCOUT® meets also the American “FCC 15 Standard”.
Source isotope not equal to CS 137
The conversion of pulses per time into dose rate starts from the Cs 137. In the case that other isotopes are present, you can directly display the pulses per time and convert them to their own tables.
