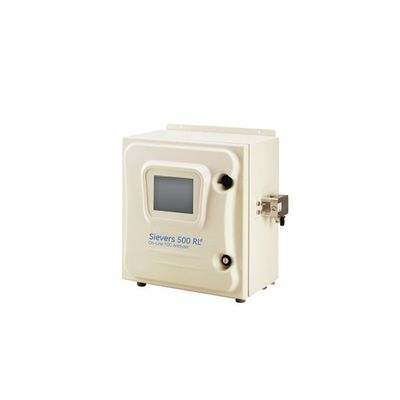

Sievers - Model 500 RLe -Online TOC Analyzer
Protect your UPW and fabrication processes with Sievers 500 RLe TOC Analyzers. The Sievers 500 RLe TOC Analyzer is designed to monitor low-level TOC measurements in microelectronics applications. Offering an operating range of 0.03 ppb to 2.5 ppm, this analyzer offers the lowest limit of detection for a reagentless, online ultrapure water TOC analyzer. The 500 RLe utilizes the Sievers membrane conductivity technology to deliver on ultra-low-level accuracy and reliability. The analyzer is easy to operate, with minimal maintenance, and no special training is required.
Most popular related searches
online TOC analyzer
TOC analyzer
online TOC
ultrapure water TOC
total organic carbon
TOC online analyzer
TOC measurement
sample temperature
grab sampling
analytical instrument
Stable. Precise. Always Ready
- 10" Touchscreen
- Online and grab sampling - Standard iOS designed to easily switch sampling methods between online and grab
- Accelerated rinse: Double the speed for faster rinse down after maintenance or at startup
- Low-level calibration and verification protocols
- Adaptive autozero
- WiFi & Ethernet for remote data access
- IP55 & full IP connections
- Same footprint as 500 RLe for easy upgrades
Total Organic Carbon
- Linear Range: 0.03 to 2,500 ppb as TOC
- Accuracy: ± 5% of measurement; ±0.1 ppb
- Precision: ± 1% of measurement; ±0.3 ppb
- pH Range: 5.5 to 8.0 in order to meet accuracy specification
- Analysis Modes: On-line, on-line averaged, on-line timed, Grab
- Analysis Time1,2: 3 minutes for continuous online measurements
- Ozone Compatibility: 50 ppb O3 continuous; 200 ppb 03 for 2 hours daily
- External Flow Rate: Minimum 50 mL/min
- Sample Temperature: 1–95 °C (34–203 °F) (withstands short-term exposure)
- Sample Pressure: Up to 100 psig
- Interferences: Insensitive to organic heteroatoms
- Calibration Stability: Typically stable for 12 months
- Display Readout: 3 significant digits
Conductivity
- Raw Conductivity Range: 0.01 to 800 µS/cm
- Conductivity Accuracy: 0.005 µS/cm or 1%, whichever is greater
- Conductivity Precision:
Instrument
- Power Requirements: 100–240 VAC, 70 W, 50/60 Hz
- Fuses: No user-replaceable fuses
- Normal Operating Environment: Intended for indoor use only
- Ambient Temperature: 5–40°C (41–104°F)
- Maximum Relative Humidity: Up to 95%, noncondensing
- Maximum Altitude: 3,000 m (9,843 ft)
- Inputs: Two isolated binary inputs
- Outputs: Serial (RS-232), one USB, three 40-20 mA, four alarms, one Ethernet
- Installation/Overvoltage: II (protects against transients present in Category II power)
- Safety Certifications: CE, ETL listed. Conforms to UL Std. 61010-1. Certified to CSA 22.2 No. 61010-1.
- Pollution Degree: 2 (normally only non-conductive pollution)
- Display: Backlit 10.1", 1280x800, touchscreen display
- Size: H: 43.4 cm (17.1 in); W: 55.9 cm (22.0 in); D: 28.7 cm (11.3 in)
- Weight: 16.3 kg (36 lb)
- IP Rating: IP 55
- Optional Wi-Fi: 802.11ac/a/b/g/n Dual-band 2.4/5 GHz
- Industrial Communications Protocol: Modbus RCP/IP & Profinet (Included), Profibus (Optional)
- Integrated Online Sampling System (iOS) - capable of standards addition
- WiFi & Ethernet for remote data access
- Quick connect I/O fittings
