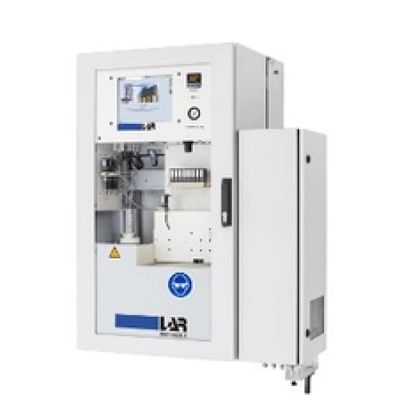

LAR QuickTOCpurity - Online TOC Analyzer for Pure & Ultra-Pure Water
Our LAR™ QuickTOCpurity™ online TOC water analyzer is the most reliable measurement system for the determination of the total organic carbon (TOC) in pure and ultra-pure water. The QuickTOCpurity is the online TOC measurement system for the determination of total carbon (TC), total organic carbon (TOC), total inorganic carbon (TIC) and dissolved organic carbon (DOC)in pure water according to DIN EN 1484, ISO 8245 and EPA 415.1. Iit can easily satisfies the most stringent TOC monitoring requirements wherever pure water is produced or consumed. Some examples include Water for Injection (WFI) in biotechnology and pharmaceutical industry, boiler condensate reclaim in the power industry, RO and DI water for the microelectronics industry, and municipal drinking water treatment.
The QuickTOCpurity online TOC water analyzer has been engineered to work without the aid of expensive catalysts by using temperatures of more than 1,200°C, well in excess of the current state of the art for online thermal catalytic oxidation which uses temperatures of only 680° to 1,000°C. Operating at these temperatures enables the QuickTOCpurity to quickly, completely oxidize even difficult-to-combust compounds, regardless of their composition. Also, The QuickTOCpurity can operate in a continuous batch mode, producing results every three to five minutes. This guarantees the detection of even brief, transient peaks throughout the day.
The QuickTOCpurity online TOC water analyzer monitors the quality of ultra-pure water in various industries. It is specifically designed to measure the concentration of Total Organic Carbon (TOC) in water samples that have been treated to remove impurities, such as ions, bacteria, and particulate matter, to achieve high levels of purity.
The QuickTOCpurity online TOC water analyzer is used in a wide range of industries, including:
- Semiconductor Manufacturing: The analyzer is used to monitor the quality of ultrapure water that is used in the manufacturing of semiconductors and other electronic components.
- Pharmaceutical Manufacturing: The analyzer is used to monitor the quality of ultrapure water that is used in the production of pharmaceuticals and medical devices.
- Power Generation: The analyzer is used to monitor the quality of ultrapure water that is used in power generation facilities, such as nuclear power plants, to ensure that it meets the required standards for cooling and other processes.
- Research and Development: The analyzer is also used in research and development to study the behavior of organic compounds in ultrapure water and to develop new technologies for water treatment.
- Measurement range: 0.1 – 20 mg/l, 1 – 2,000 µg/l
- Fast Response Time TC: 1 min
- Continuous TC, TOC, TIC monitoring is easy
- Easy calibration and validation (Quick Calibration)
- Highest combustion temperature (1,200°C) available on the market
- Catalyst-free technique
- Closed system to prevent contaminations
- No memory effects
- Low operational and maintenance costs
- According to DIN EN 1484:1997-08, ISO 8245:1999-03 and EPA 415.1
- Flow Sampler
- Ambient Air Preparation Unit
- CO2-Remover
- Multi-stream measurement for up to 6 sample streams
- Combination with COD and TNb detection
- IP54 (Standard)
- NEMA 4X
- ATEX Zone I
- ATEX Zone II
- IECEx
- Pure water
- Process water
- Boiler feed water
- Condensate return
