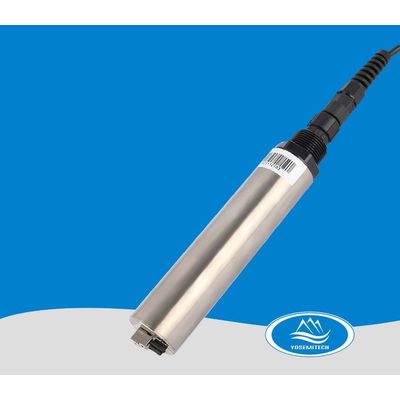

Yosemitech - Model Y512-A -Online TSS Sensor
Yoesemitech‘s Y512-A TSS sensor based on the scattered light measurement principle, the use of near-infrared transmitter, so that the chroma interference is minimized, and it comes with temperature compensation, can achieve more accurate measurement. Y512-A does not need reagents, will not cause pollution, more environmental protection; Integrated self-cleaning brush, easy to install and use, even long-term online monitoring still has excellent stability.
Most popular related searches
- The RS-485 output , Modbus protocol compatible
- With automatic cleaning brush, suitable for long-term online monitoring
- Ex-factory has been accurately calibrated, can be directly installed and used
- Can be directly connected to Yosemitech’s controller, handheld meter, more convenient to use.
Name: TSS sensor
- Model: Y512-A
- Principle: scattering method
- Range: 0.5-4000mg/L or 0.5-10000mg/L
- Resolution: ±5%
- Resolution: 0.1mg/L
- Size: Φ36mm*198.2mm
- Power Requirements: DC ~24V, current<50mA (when cleaning＜100mA)
- Temperature range: 0~50℃
- Housing IP Rating: IP68
- Maximum pressure: 3 bar
- Sensor Interface: Supports RS-485, MODBUS protocol
- Installation: Submersible installation
- Probe cable length: 10m (default), customizable
- Calibration: one-point or two-points calibration
- Housing material: Titanium alloy
