Yantai Chemins Instrument Co., Ltd.

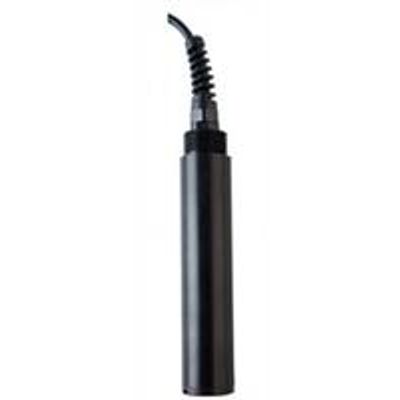

CheminsModel ZS-206 -Online Turbidity Sensor

SHARE

With automatic temperature compensation. Output standard Rs485 (Modbus/RTU protocol) digital signal or 4~20mA signal. The Rs485 signal is easily connected to third-party devices such as PLCs, DCS, industrial control computers, general-purpose controllers, paperless recording instruments or touch screens. Parameter settings are more convenient and faster. The calibration function provides a quick and easy way to calibrate. Real-time data transmission allows you to get timely and accurate data on monitoring water bodies.

Most popular related searches
  • Various water treatments (river/lake/potable water source/groundwater/marine water quality, etc.), aquaculture, environmental monitoring, CIP and other industries.
  • Measuring principle Light scattering method
  • Scale range 0-1000NTU or 0-200NTU
  • Resolution 0.1NTU,0.1℃
  • Accuracy ±3% F.S., or ±0.3NTU,(Take the big one as the criterion),±0.5℃
  • Calibration Two-point calibration
  • Output way RS-485 bus,MODBUS-RTU agreement
  • Working conditions 0~50℃,<0.2MPa
  • Storage temperature -5~65℃
  • Installation 3/4" NPT screw thread,Immersive installation
  • Cable length 5m,Other length can be customized
  • Power consumption < 0.5W
  • Power supply 12~24VDC ±10%
  • Protection grade IP68
