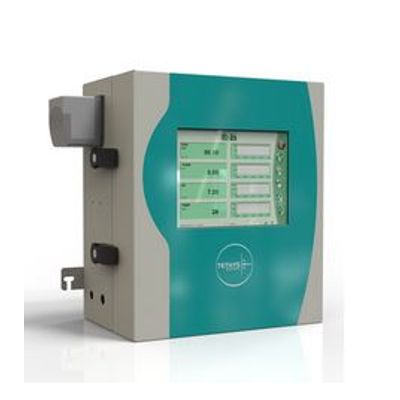

Tethys - Model UV500 IMO -Online Water Analyser

When different streams need to be analysed, an optional multiplexing system delivers relay contacts to control external electric-valves or external pumps. UV500 IMO can control two solenoid valves to select the inlet or the outlet of EGC system. The 8 parameters (PAH, Turbidity, Temperature, pH) for inlet and outlet water can be displayed at the same time on the screen.

The analyser is designed to automatically clean itself including the pH probe with an adjustable time range, typically 24 hours, using sulfuric acid 5%. This autocleaning with sulfuric acid 5% proves to be more efficient than water or air autocleaning for dirty and oily samples. It prevents any clogging in the hydraulic circuit from heavily charged water samples. This autocleaning design enables uninterrupted measurements and low maintenance.

Sulfuric acid has no absorbance in the UV-visible, making it an ideal component to measure the zero. At the end of each autocleaning cycle, the zero is performed on the sulfuric acid 5%. This frequency of zeroing is the key for successful measurements as it prevents any drift in the zero to occur.

If the water is already pressurized, the sample can be admitted directly inside the analyser with a maximal pressure of 4 bars. Otherwise an optional built-in peristaltic pump, synchronised with the measurement to extend the tubing life time, allows to take the sample directly from a tank located up to 6 meters below the analyser. For demanding applications with long distances, another peristaltic pump in a separate enclosure is proposed as an option. For some applications on river water or wastewater where two sampling pumps are necessary, the UV500 delivers a relay contact to synchronise the primary pump. The delay and running time of each pump can be adjusted easily in the parameters menu of the analyser.
