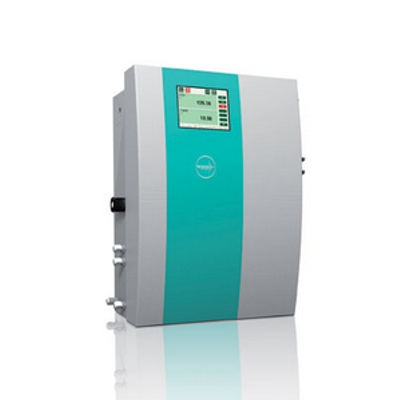

Tethys - Model UV400 -Online Water Analyser

SHARE

The UV400, based on a modular concept, allows to monitor simultaneously many different parameters for waste water or drinking water treatment plants as well as river monitoring stations. Each parameter corresponds to a specific optical module that can be selected by the user while ordering the analyser, depending on the application. Mainly based on UV spectroscopy, well known for its stability and low operating cost, the UV400 can measure parameters like organic matter, ammonia, nitrate, aromatics hydrocarbons (PAH), colour, hydrogen sulphide and chlorophyll.

Most popular related searches
online water analyzer
drinking water treatment plant
surface water drinking water
water analyzer
drinking water process
UV-VIS spectroscopy
river monitoring system
water treatment plant
dissolved oxygen probe
drinking water treatment
A. Complementary modules allows the measurement of phosphate by colorimetric method and turbidity by a visible or infra-red laser diode.External probes can be added for physicochemical parameters like pH, ORP, dissolved oxygen, conductivity and turbidity.Thanks to its automatic cleaning system and its extremely long life time lamp, the maintenance is roughly limited to the periodic refill of the inexpensive cleaning solution and eventually reagents depending on the parameters.
UV-visible Spectroscopy
  • Most of the measurements (UV254, NH4, H2S, NO3, Colour, PO4, PAH, Chlorophyll A) are based on the UV-VIS spectroscopy that brings fast and stable measurements with a simple hydraulic circuit for a high reliability.
  • All the measurements are done within 5 seconds except PO4, NH4 and H2S that require about 3 minutes.
  • The patented flow cell allows very high level of suspended solid without clogging. The turbidity of the sample is automatically compensated by a dual-wavelength method as shown on the figure.
  • The UV source is a xenon flash lamp specified for 109 flashes that corresponds to more than 10 years of life time with one measurement every minute.
  • Physico-chemical measurements (pH, ORP, Dissolved oxygen, Conductivity) can be added to the internal measurements by using external probes. The dissolved oxygen probe is based on fluorescence method for a lower maintenance and higher stability.
  • Three external turbidity probes (high, medium and low range) are also available if the measurement need to be done in situ, for example before filtering.
Multiplexing system
When different streams need to be analysed, for example inlet and outlet of a plant, an optional multiplexing system delivers relay contacts to control external electric-valves or external pumps. Up to 6 different streams can be selected The measuring channels can be either duplicated (each one having its own 4-20mA output or MODBUS register), or measured sequentially to fit with the maximum of 16 measuring channels (a MODBUS register tells which stream is currently being measured).
Sampling SystemThe UV400 can adapt to many different kind of sampling depending of the application : surface water, drinking water, process water or wastewater.

If the water is already pressurized, the sample can be admitted directly inside the analyser with a maximal pressure of 4 bars. Otherwise an optional built-in peristaltic pump, synchronised with the measurement to extend the tubing life time, allows to take the sample directly from a tank located up to 6 meters below the analyser.For demanding applications with long distances, another peristaltic pump in a separate enclosure is proposed as an option.For some applications on river water or wastewater where two sampling pumps are necessary, the UV400 delivers a relay contact to synchronise the primary pump. The delay and running time of each pump can be adjusted easily in the parameters menu of the analyser.In case filters are used in the sampling system, the UV400 is also able to provide a relay contact to clean the filter synchronised with the measurements.
