Ono Sokki Technology, Inc.

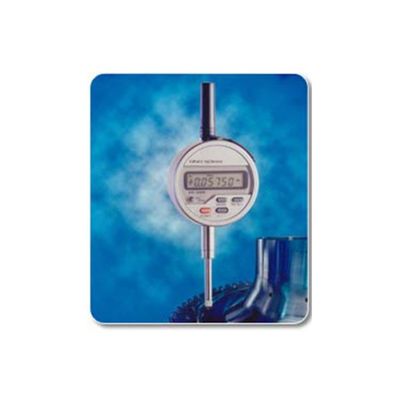

OnoSokki - Model DG-525H -High Accuracy Metric Gauge
Digital Linear gauge discontinued and possible replacements are the EG-225, GS-3813 and GS-3830.
- Rechargeable battery
- AGD Group II dimensions
- + / - Direction changeover
- Output capability
- Reverse display option available
- Adjustable measuring force
- Data transfer speed 1.6 ms
- TIR ( Max. - Min. = Range )
- Preset capability
- Range : 1.0" / 25.4 mm
- Resolution : 0.0005 mm
- Response Speed : 300 mm / s
- Measuring Force : 150 gf / 5.3 ozf (adjustable force, min. 25g)
- Output : Serial BCD, Optional RS-232C, MTI and Analog outputs
- Stem Diameter : 10 mm
- Contact Point Thread Size : ISO M2.5
- Operating temperature : 41° to 104° F / 5° to 40° C
- Power Supply : AC Adapter (100,120,220,240V) Built-in 8-hour rechargeable battery
- Dimension : L-4.4" W-2.0" TH-1.5"
- Weight : 6.3 oz / 180 g
