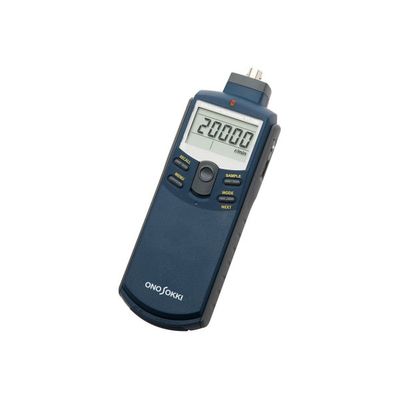

OnoSokki - Model FT-7200 -Advanced Handheld Tachometer
The FT-7200 Advanced Tachometer is an easy-to-use handheld digital tachometer offering high functions and performance. The use of FFT (Fast Fourier Transform) technology enables the FT-7200 to perform frequency analysis of rotation speed by using change of signal in sound, vibration or magnetic flux from rotating machines such as a motor or the like. Selection from 5 kinds of measurement modes allows it to calculate and display rotation speed of any complex waveform signals from a sound level meter or an accelerometer accurately by extracting the exact frequency component.
The FT-7200 enables non-contact measurement of rotation speed by sound or vibration from a measurement object with inaccessible rotating shaft such as a built-in motor in a product, which disabled using conventional tachometers. No need for affixing a reflection mark or modification to a rotating shaft of a measurement object. Also the use of new algorithm allows calculation and displaying with high follow-up performance, even a sudden change of rotation speed in rising/falling edge of a motor or accelerated/decelerated engine rotation, which has been disabled with conventional models. The FT-7200 is a battery-operated and easy to carry handheld tachometer facilitating on-site measurement. The FT-7200 can be used with various optional detectors by Ono Sokki; microphone and sound level meter, accelerometer and engine vibration detector, ignition pulse detector and so on. In addition, the FT-0801 cigarette lighter socket sensor is available for detecting voltage output from power outlet in vehicle. Selectable from wide range of detectors depending on your requirements.
- Does not require the application of reflective markers.
- Allows easy evaluation of RPM even when rotating shafts are not directly accessible.
- Added versatility when combined with a range of detectors, including: Ignition pulse detectors, accelerometers, microphones and sound level meters.
- Provided with an analog output and averaging functions.
- Large size LCD with backlight for displaying the measured result
- Computing System : FFT Calculation
- Measurement RPM Range : 250 Hz Range: 3.75 Hz to 250 Hz, 500 Hz Range: 7.5 Hz to 500 Hz, 2 kHz Range: 30 Hz to 2 kHz (18,000 to 99,999 r/min)
- RPM Resolution : Depends on Frequency Range and Number of Pulses Set
- Measurement Accuracy : +/- 2 x RPM Resolution +/- 1
- Measurement Time : 250 ms
- Display : 7 Segmant LED, 5 Digits, 10.2 mm Character Height
- Pulse Count Set Range : 0.5 to 200 in 0.5 Steps
- Rotational Direction Determination Function : Not Available
- Exponential Averaging : Select: Off, 2, 4, 8, or 16 Times
- Analog Output : 0 to 1 V / 0 to F.S.
- Comparator Output : Not Available
- Interface : None
- Dimensions : 189.5 mm (L) x 66 mm (W) x 47.5 mm (D)
- Weight : Approximately 230 g
- Range : 250 Hz Range: 3.75 Hz to 250 Hz, 500 Hz Range: 7.5 Hz to 500 Hz, 2 kHz Range: 30 Hz to 2 kHz
- Detection Distance : Varies on the detector being used.
- Power / Battery life : Four type AAA batteries or AC Adapter
- Operating temperature : 32° to 104° F / 0° to 40° C
- Description : Advanced Handheld Tachometer
- Applicable Detectors : OM-1500, OM-1200, IP-292, IP-296, IP-3000A, IP-3100, FT-0810, VP-202, VP-1220, NP-2000 series NP-3000 series, MI-1432(microphone)+ MI-3111(preamplifier), Magnetic flux leakage sensor, LED reflected-light optical fiber sensor.
- Pulse Output : Hi: 4.5 V or more, Lo: 0.5 V or less
